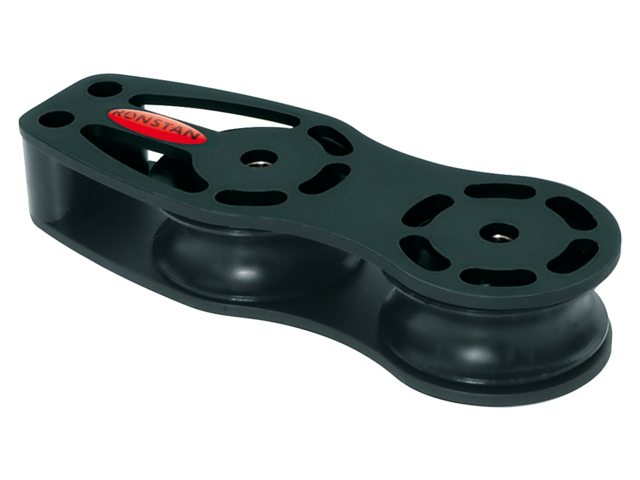

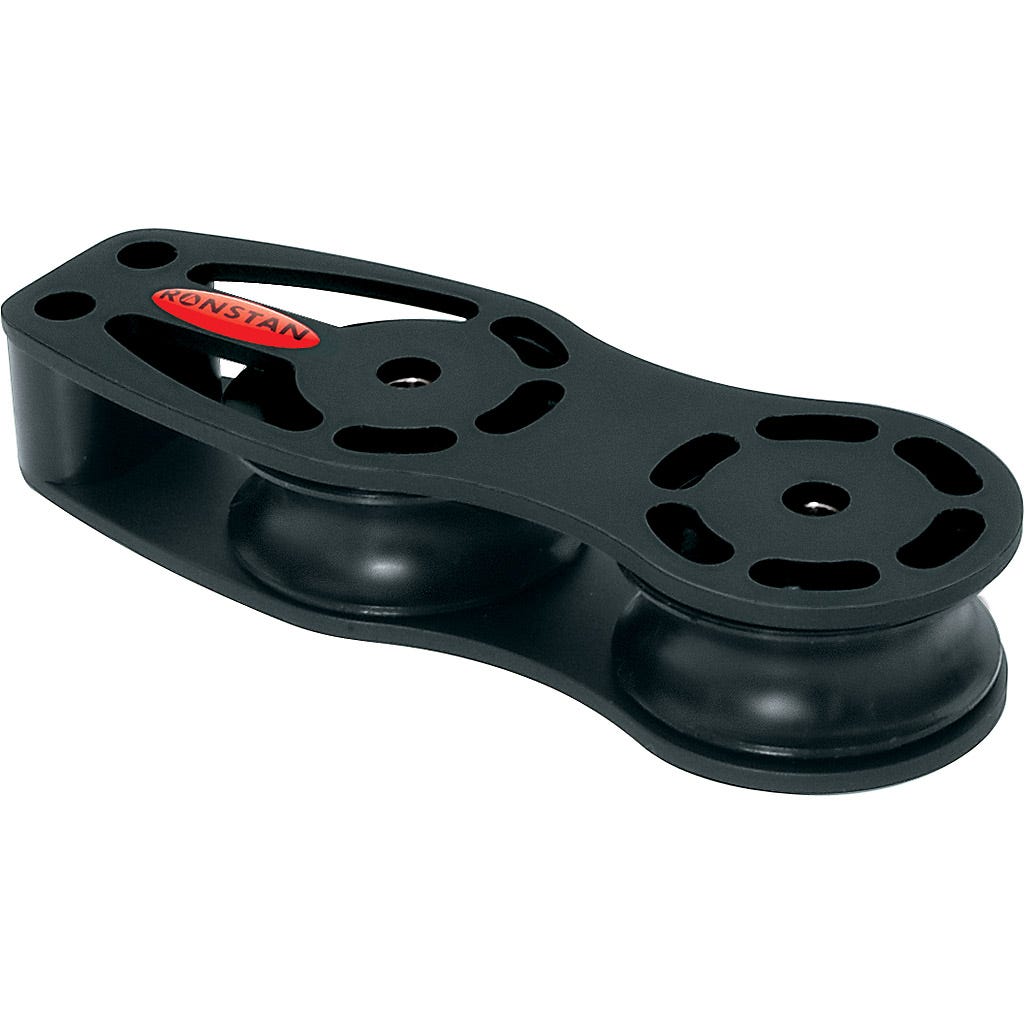

Ronstan, Series 40 All Purpose Double Deck Organiser, RF41821

Popis

Deck organisers are an efficient way to redirect halyards and other control lines to winches, stoppers, and cleats. The sheaves are made from impact-resistant Acetal, while the deck organisers feature alloy cheeks. All sizes can be stacked to create double versions, but the maximum working load (MWL) of the top sheaves must not exceed 50% of the total block load rating.

This lightweight design includes cheek cutouts for easy bearing maintenance and through hub mounting for maximum strength. The all-purpose bearing system provides maximum static load capacity. It mounts with 4 x 6mm (1/4”) fasteners, which are not supplied. The organiser is 116mm (4 9/16") in length with hole centres at 48.5mm (1 29/32").

It is suitable for line deflection on larger yachts, depending on load and angle of deflection, and is ideal for halyard and control line deflection on boats up to 11m (36ft).

Specifications

• B.L. (kg): 1000
• Fastener Ø (mm): 6
• M.W.L. (kg): 500
• Max. Rope diameter (mm): 12
• Qty. Fasteners: 4
• Sheave diameter (mm): 40
• Type of Block: Deck Organisers
• Weight (g): 101
