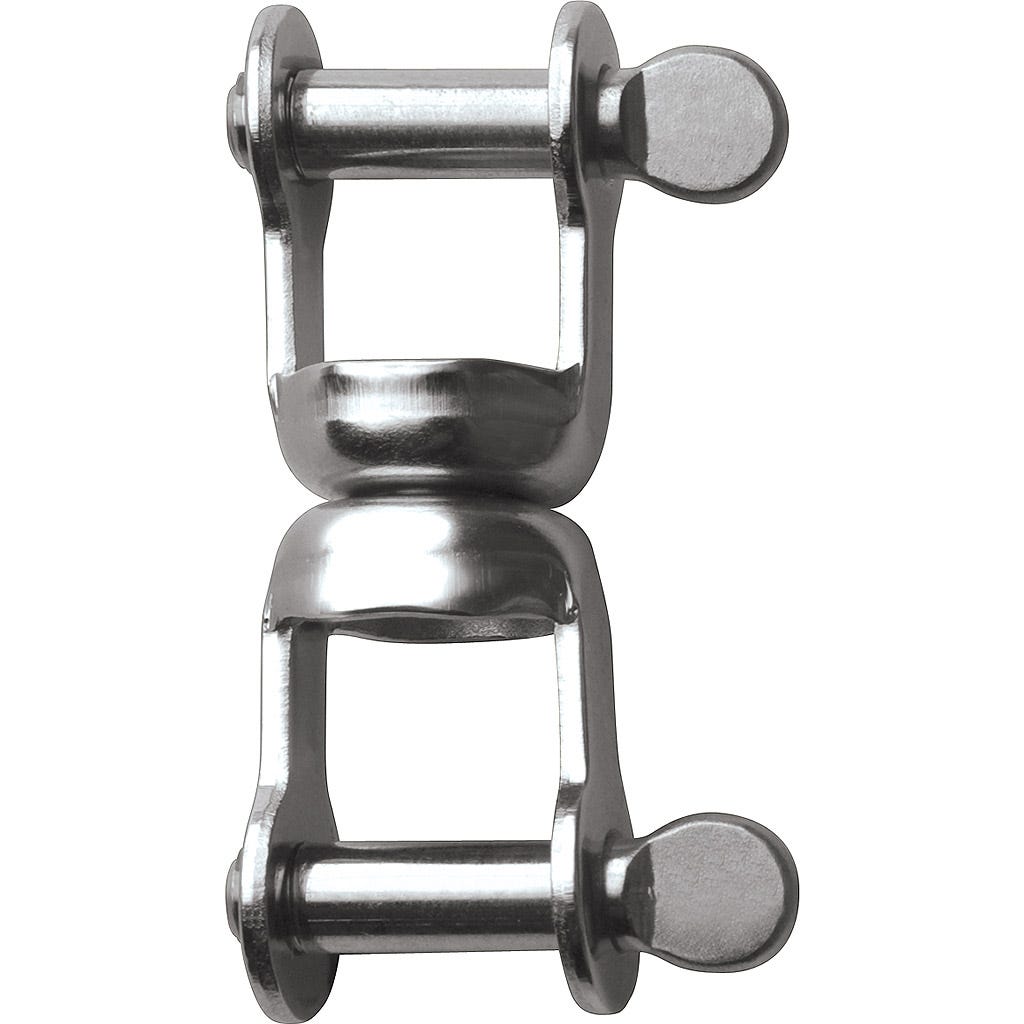

Ronstan, Stainless Steel Swivel Shackle, RF173
Varenr.: 68710173
Leveringstid: 2-3 Dage
Nie udało się wczytać opcji odbioru
Opis
The Ronstan Stainless Steel Swivel Shackle is designed for use with blocks and rigging systems to provide articulation and rotation. It is not suitable for high-speed rotating applications. The shackle is made from Grade 316 stainless steel for both the body and pins, ensuring durability and resistance to corrosion.
Product number RF173 features a coined head and 1/4" pins.
Specifications
- A (mm): 6.4
- B (mm): 15
- C (mm): 42
- D (mm): 11.9
- P.L. B.L. (kg): 700
- Shackle Pin Product No.: RF33
- U.D.L. B.L. (kg): 1100
- Weight (g): 40
Notes:: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
