Ronstan, Series 200 Triggersnap™ Shackle with Small Bail, RF7210
Varenr.: 74551102
Leveringstid: 2-3 Dage
Nie udało się wczytać opcji odbioru
Opis

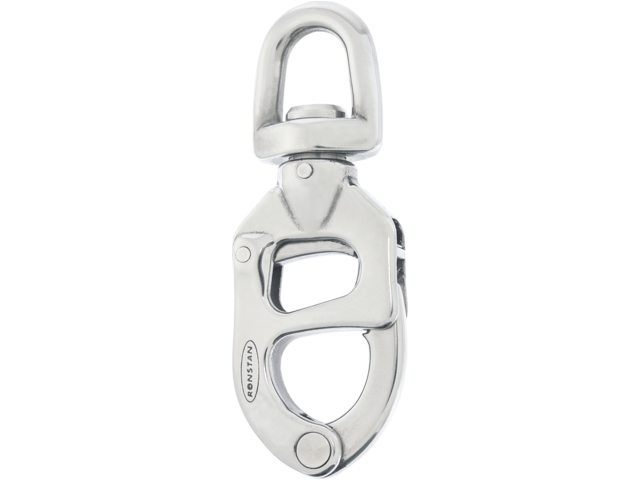

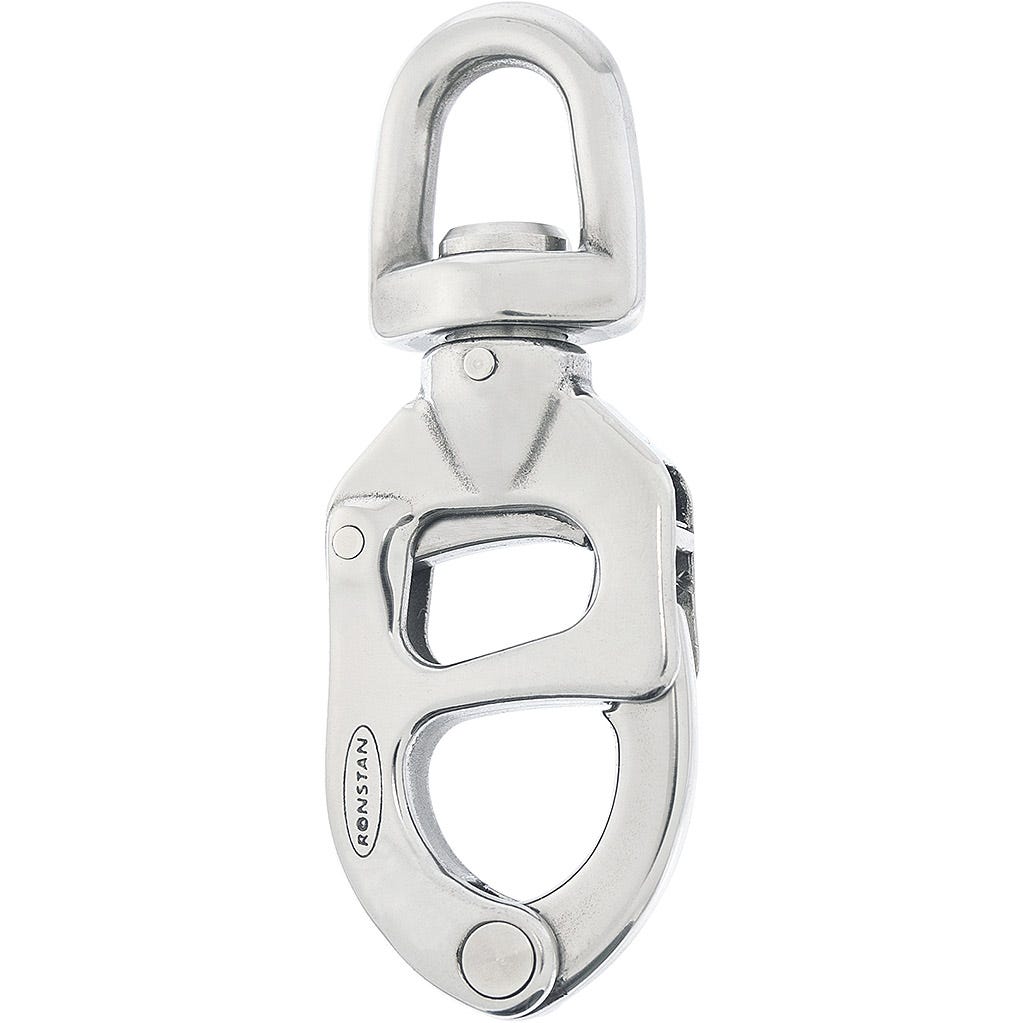

Ronstan's Series 200 Triggersnap™ Shackle with Small Bail features a trigger release mechanism for quick and intuitive one-handed operation. It can be released under load using a spike (available as RF1322) to safely actuate the trigger. The shackle is made from heat-treated, investment cast 15-5PH stainless steel components, providing high strength and excellent corrosion resistance. Each Triggersnap™ is individually proof-load tested and stamped with a production code for traceability. This model is suitable for boats ranging from 7.0 to 11.0 meters (24 to 36 feet) and has a maximum working load of 1600 kg and a breaking load of 3200 kg. The product offers both small and large bail options.

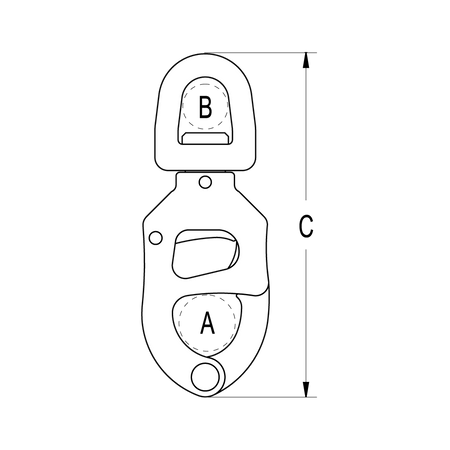

Specifications
- A (mm) – Boltdiameter: 16
- B (mm) – Indvendig bredde: 13
- B.L. (kg): 3200
- C (mm) – Total laengde: 97
- M.W.L. (kg): 1600
- Weight (g): 106
