Velair, Airconditioner Compact i10 VSD SMART

Description

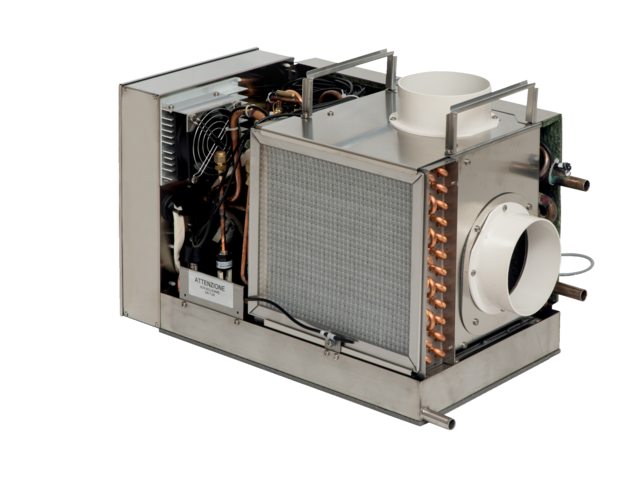

The Velair i10 VSD SMART is an advanced, standalone air conditioner featuring a brushless DC motor and inverter that regulates speed and cooling capacity. It uses R32 refrigerant and has an electronic expansion valve.

• The compressor continuously adjusts its speed based on ambient temperature and set temperature, ensuring optimal comfort level with minimal energy consumption.
• VSD VELAIR units comply with EMC Directive 2004/108/EC.
• Inverter VSD - Variable Speed Drive: YES
• Voltage/Phase/Cycle: 1 F 230V - 50/60 Hz; 1 F 150V - 50/60 Hz
• Cooling capacity range: 4,000 - 10,000 BTU/h
• Heat pump: Yes
• Maximum input power cooling: 0.64 kW / 2.9 A
• Input power ECO mode: 0.21 kW / 0.95 A
• Minimum seawater flow: 12 l/min
• Maximum airflow: 400 m3/h
• Air outlet ducts (for maximum capacity): 1 x Ø 100 mm - 1 x Ø 3.9”
• Min. opening for return air grille: 400 cm2
• Min. opening for supply air grille: 250 cm2
• Refrigerant: R32
• Control panel cable length: 8 m
• Width - including electrical box: 571 mm - 22.5”
• Height: 320 mm - 12.6”
• Depth: 323 mm - 12.7”
• Weight: 25 kg - 55.1 lbs
• Operating limits: Seawater summer mode > +5°C/+41°F
• Operating limits: Seawater winter mode < +40°C/+104°F

Specifications

• Brand: Velair
• Item no.: 90180611
• EAN: 8054141609648
• MPN: 24831GW
• Packaging unit: 1 pcs
