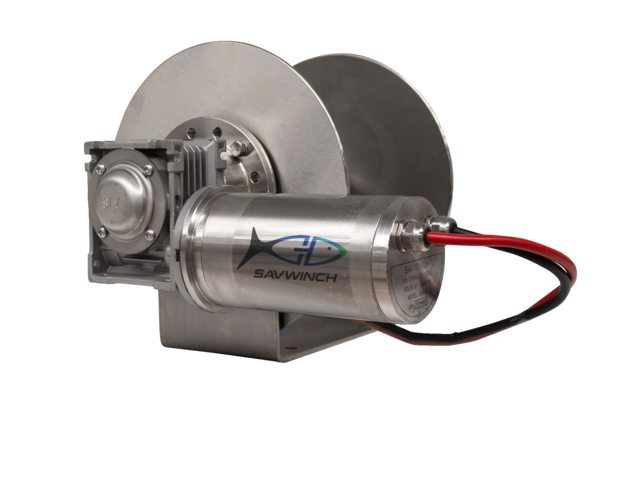

Savwinch, drum winch stainless steel AISI 316, 290 x 357.5 x 385 mm (5012)

Description

Drum winches are a good alternative to traditional anchor winches. With a drum winch, the line and chain are rolled directly onto the drum without passing through a gypsy, significantly reducing the risk of wear and tangling.

• Advantages of a drum winch:
• Suitable for all types of lines and chains
• Multiple mounting options
• Line does not need to be secured during anchoring
• Quieter in use
• Requires less space for installation
• The Signature Series drum winches from Savwinch are very strong and suitable for use in both salt and freshwater and have an IP68 rating against dust and water ingress.
• They feature a drum and motor housing in stainless steel AISI 316. The gearbox is made of a powder-coated aluminum housing. The winches have an IP68 rating against dust and water ingress.
• Savwinch drum winches have an extra-large gearbox that locks itself automatically. This means that during anchoring, the full force can rest on the winch without any risk of damage.
• The drum winch set includes: drum winch, dashboard switch, solenoid, fuse, line and chain, mounting plate, and guide roller.

Specifications

• Brand: Savwinch
• Model: 1500SS Kit
• Item no.: 76500414
• EAN: 9360914000079
• MPN: 5012
• Height: 290 mm
• Width: 357.5 mm
• Depth: 385 mm
• Power output (Watt): 700 W
• Voltage: 12 V
• Drum diameter ⌀: 280 mm
• Weight: 18 kg
• Line speed: 40 m/mn
• Maximum anchor weight: 19 kg
• Fuse: 60 A
• Maximum chain length: 15 m
• IP-ratings: IP68
• Included chain: 6 mm x 8 m
• Included rope: 8 mm x 95 m
• Maximal boat length: 8 m
• Drum: Yes
• Material: Aluminum, Stainless Steel AISI 316
• Chain Norm: No gypsy
• Packaging unit: 1 pcs
