Ultraflex, hydraulic system for inboard engines, 115 hp (42824M)

Description

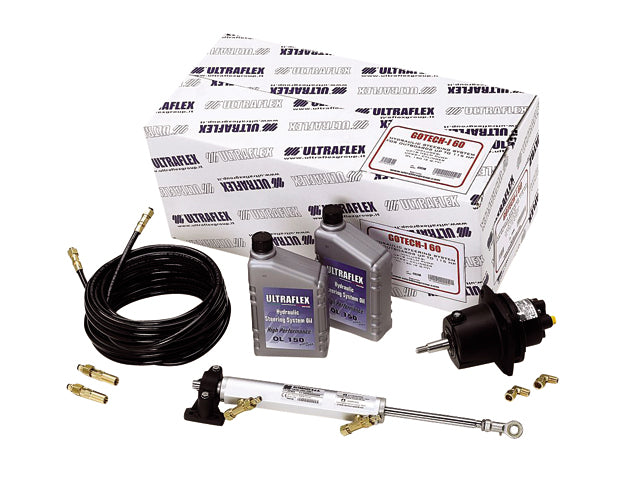

The GOTECH™ hydraulic steering system for engines up to 115 hp includes a UP18 intermediate steering pump, UC69-I inboard cylinder, and OL150 2l hydraulic oil. The system comes with a hose kit with a diameter of Ø 1/4" and a length of 2 x 6m (19.7').

• Number of wheel turns: 3.8
• The UP18 steering pump features a shut-off valve to prevent backlash from the engine to the steering wheel and an integrated bypass valve to prevent damage from overpressure. The pump can be used with the UC69-I cylinder.

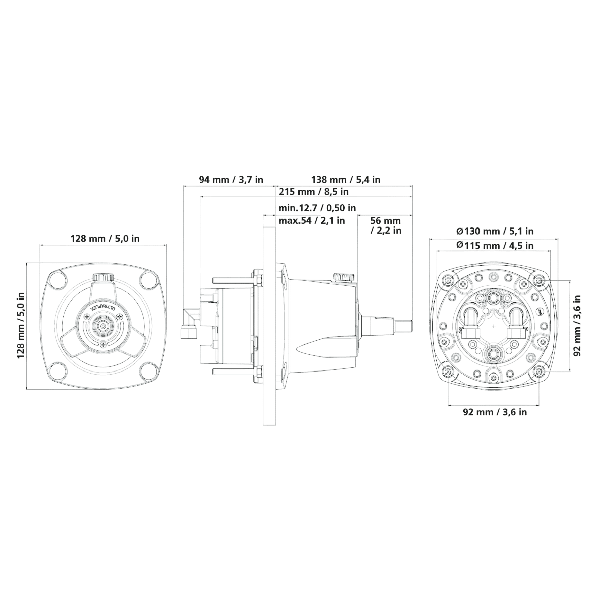

• Technical specifications for UP18 include a capacity per stroke of 18cc, 5 plungers, and a maximum wheel diameter of Ø 508mm. Working pressure is 55bar/800PSI.
• Technical specifications for UC69I include a balanced number of strokes from center to starboard and port, a volume of 69cc, a maximum torque of 32kgm, a working pressure of 168kg, and a workload of 222kg. The inner diameter is Ø 25mm, and the stroke length is 150mm. Hose connection is 3/8".

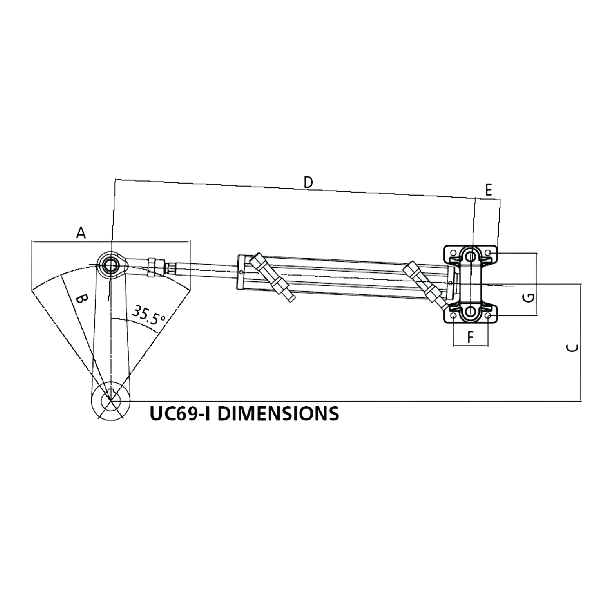

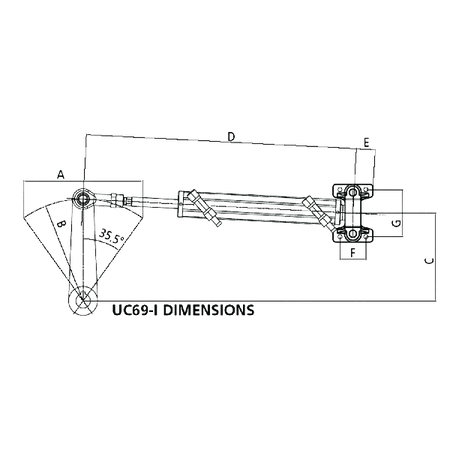

• Dimensions: A: 150mm - 5.9", B: 129mm - 5.11", C: 105mm - 4.13", D: 417mm - 16.42", E: 31.3mm - 1.23", F: 40mm - 1.57", G: 73mm - 2.87". Rod diameter Ø: 14mm - 0.6".

Specifications

• Brand: Ultraflex
• Item no.: 75243999
• EAN: 8031164282423
• MPN: 42824M
• Inner size diameter: 25 mm
• Suitable diameter hose connection: 3/8"
• Motor capacity: 115 hp
• Workload: 222 kg
• Working pressure: 168 kg
• Packaging unit: 1 pcs
