Ultraflex, hydraulic system for 115 hp (42634G)
Regular price
€906,95
incl. VAT
Regular price
-46%
€1.690,95
Sale price
€906,95
incl. VAT
Varenr.: 75244000
På lager (1 stk)
Leveringstid: 2-3 Dage
Couldn't load pickup availability
Description

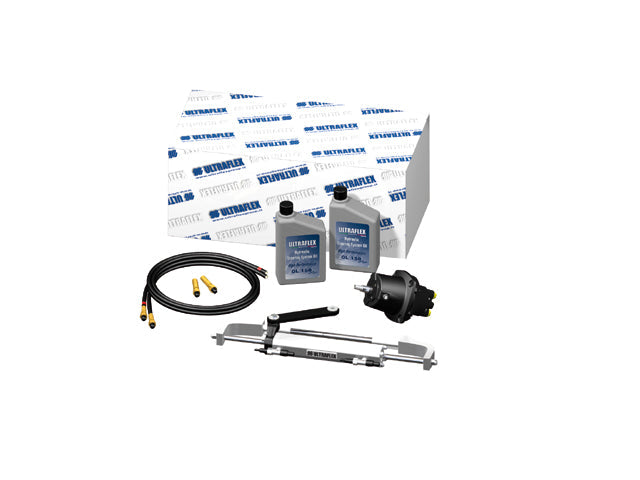

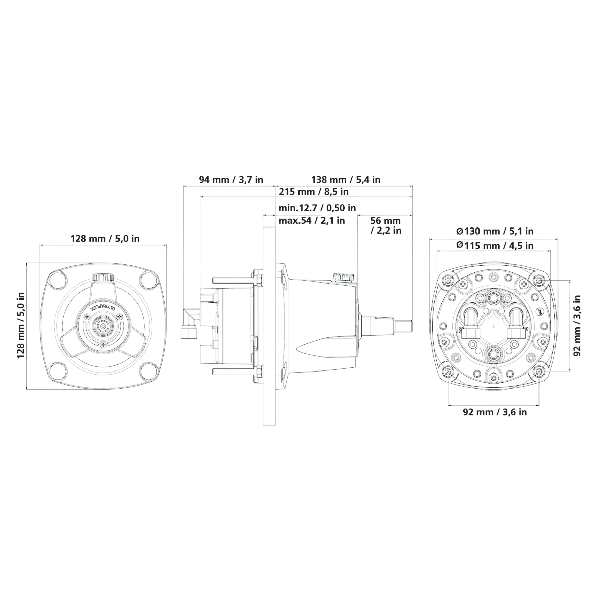

The GOTECH™ hydraulic control system is designed for engines up to 115 hp and includes a UP18 intermediate steering pump, UC81-OBF front mount cylinder, OL150 2l hydraulic oil, and an OB-GT / M hose kit with a diameter of Ø 1/4" and a length of 2 x 6m. The system features 4.5 wheel turns and is equipped with a shut-off valve to prevent motor backlash and a bypass valve to protect against overpressure.
- UP18 steering pump capacity per stroke: 18cc
- Maximum wheel diameter: Ø 508mm
- 5 plungers
- 55bar/800PSI

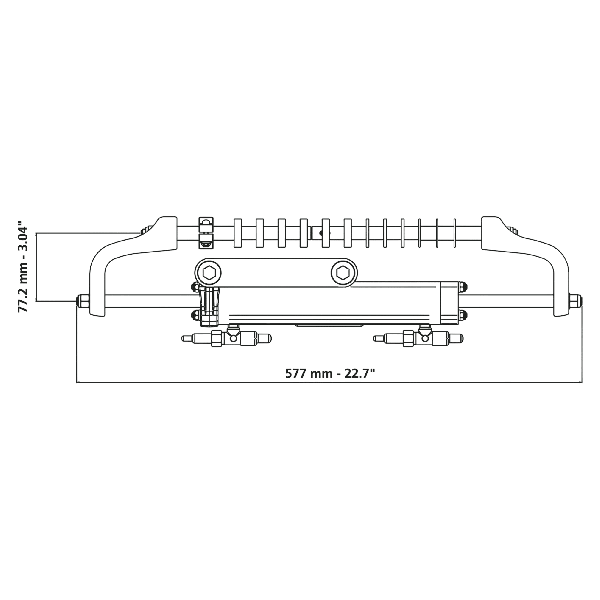

- UC81-OBF cylinder volume: 81cc
- Load: 222kg
- Inner diameter: Ø 27.4mm
- Stroke length: 186mm
- Hose connection: 3/8"
Specifications
- Brand: Ultraflex
- Item no.: 75244000
- EAN: 8031164426346
- MPN: 42634G
- Inner diameter: 27.4 mm
- Suitable diameter hose connection: 3/8"
- Motor capacity: 115 hp
- Workload: 222 kg
- Packaging unit: 1 pcs
