Ultraflex, hydraulic set for inboard engines max 150 hp, 6 m hose

€1.854,95 incl. VAT

Varenr.: 75244019

På lager (3 stk)

Leveringstid: 2-3 Dage

Description

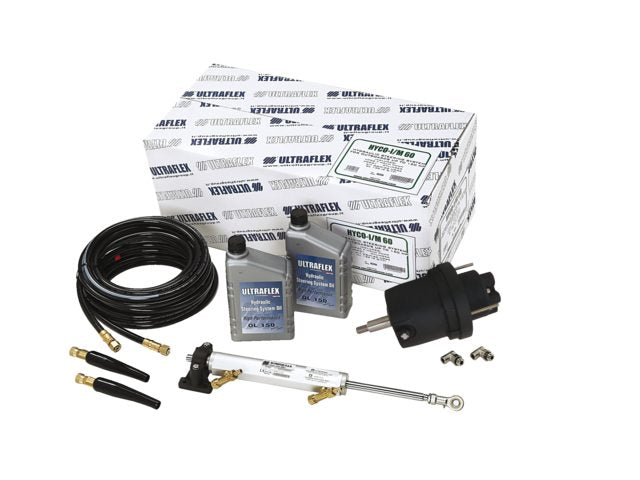

This set is suitable for most inboard engines up to 150 hp on the market. The set includes all necessary elements to replace or install a new hydraulic or mechanical system. Includes a 6-meter hose that can be customized, as well as fittings.

  • UC69-I
  • OL150 2 liter hydraulic oil
  • KIT OM/M-60 (2 x 6 meter hose)
  • Number of wheel turns: 3.5
  • The UP20F steering pump has a built-in check valve to prevent backflow from the engine into the hydraulic system. The pump also has a bypass valve to prevent overpressure in the pump, preventing damage. Technical information UP20F: Oil displacement 20cc
  • 5 plungers
  • Maximum steering wheel diameter Ø 508mm
  • Maximum steering wheel diameter Ø with X52 406mm
  • Technical information UC69-I: Equal number of turns from center to starboard and port (balanced)
  • Volume 69cc
  • Working pressure 168kg
  • Inner diameter Ø 25mm
  • Stroke 150mm
  • Fittings 3/8"

Specifications

  • Brand: Ultraflex
  • Item no.: 75244019
  • EAN: 8031164426711
  • MPN: 42671N
  • Inner diameter: 25 mm
  • Motor capacity: 150 hp
  • Working pressure: 168 kg
  • Packaging unit: 1 pcs
