Ultraflex, hydraulic set for outboard motors, 9 m hose (42889T)

Description

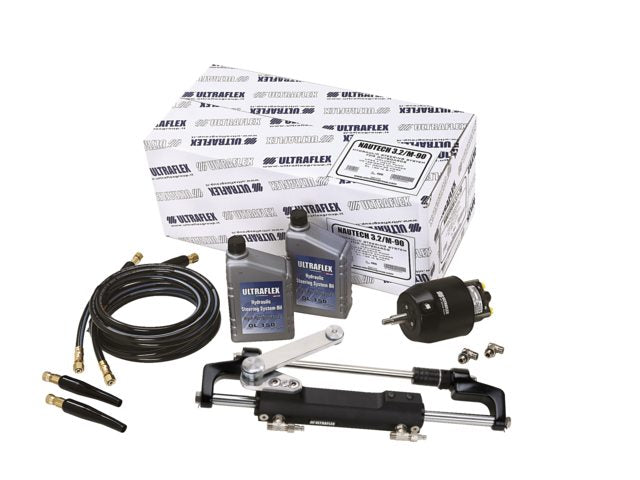

This Nautech hydraulic set is suitable for most outboard motors up to 300 hp. The set includes all necessary components to replace or install a new hydraulic or mechanical system, including a 9-meter hose with fittings.

• UC128-OBF/1 (75244005)/ UC128-OBF/2 (75244008)
• OL150 2L hydraulic oil
• KIT OB/M90 hose kit (2 x 9 meter hose)
• Number of wheel turns: 4.3
• UP28 steering pump with built-in check valve and bypass valve
• Oil displacement: 28cc
• 5 plungers
• Maximum recommended steering size diameter: Ø 710 mm
• Technical information UC128-OBF1/2: Volume 120cc
• Working pressure: 450 kg
• Inner diameter: Ø 35 mm
• Stroke length: 185 mm
• Hose connection: 3/8"
• Note: UC128-OBF is available in three versions depending on the application: UC128-OBF/1, UC128-OBF/2, and UC128-OBF/3 (on request).

Specifications

• Brand: Ultraflex
• Item no.: 75244005
• EAN: 8031164428890
• MPN: 42889T
• Inner diameter: 35 mm
• Suitable diameter hose connection: 3/8"
• Motor capacity: 300 hp
• Working pressure: 450 kg
• Packaging unit: 1 pcs
