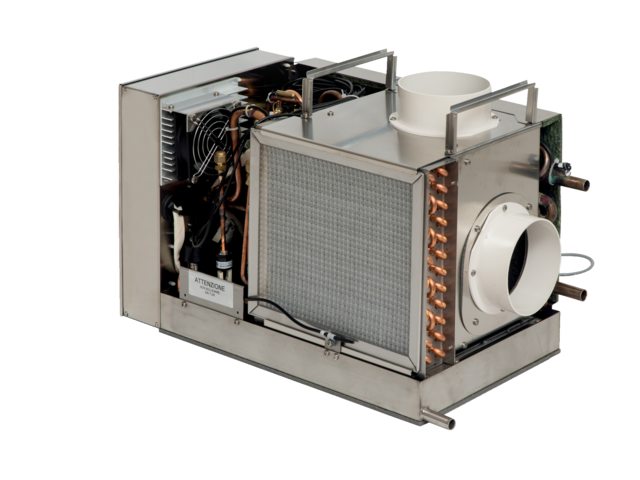

Velair, air conditioner Compact i16 VSD SMART

Description

The Velair i16 VSD SMART is an advanced air conditioner featuring a brushless DC motor and inverter that adjusts speed and cooling capacity for optimal comfort and minimal energy consumption. It uses R32 refrigerant and has an electronic expansion valve.

• The compressor continuously adjusts its speed based on ambient and set temperatures, ensuring rapid cooling and reduced energy consumption once the desired temperature is reached.
• The inverter operates between 20 and 100 Hz.
• VSD VELAIR units comply with EMC Directive 2004/108/EC.
• Inverter VSD - Variable Speed Drive: YES
• Voltage/Phase/Cycle: 1 F 230V - 50/60 Hz; 1 F 150V - 50/60 Hz
• Cooling capacity range: 6,000 - 16,000 BTU/h
• Heat pump: Yes
• Maximum input power cooling: 0.93 kW / 4.1 A
• Input power ECO mode: 0.31 kW / 1.35 A
• Minimum seawater flow: 15 l/min
• Maximum airflow: 550 m3/h
• Air outlet ducts (for maximum capacity): 1 x Ø 125 mm - 1 x Ø 4.9”
• Min. opening for return air grille: 600 cm2
• Min. opening for supply air grille: 300 cm2
• Refrigerant: R32
• Control panel cable length: 8 m
• Width - including electrical box: 650 mm - 25.6”
• Height: 330 mm - 13”
• Depth: 355 mm - 14”
• Weight: 28 kg - 61.7 lbs
• Operating limits: Seawater summer mode > +5°C/+41°F
• Operating limits: Seawater winter mode < +40°C/+104°F

Specifications

• Brand: Velair
• Item no.: 90180612
• EAN: 8054141609662
• MPN: 24832JW
• Packaging unit: 1 pcs
