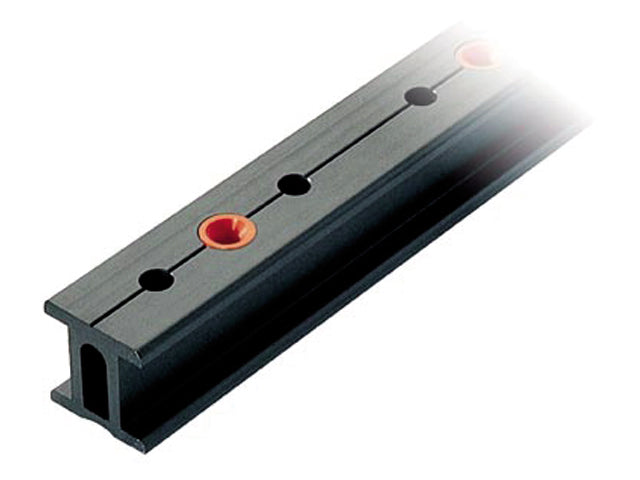

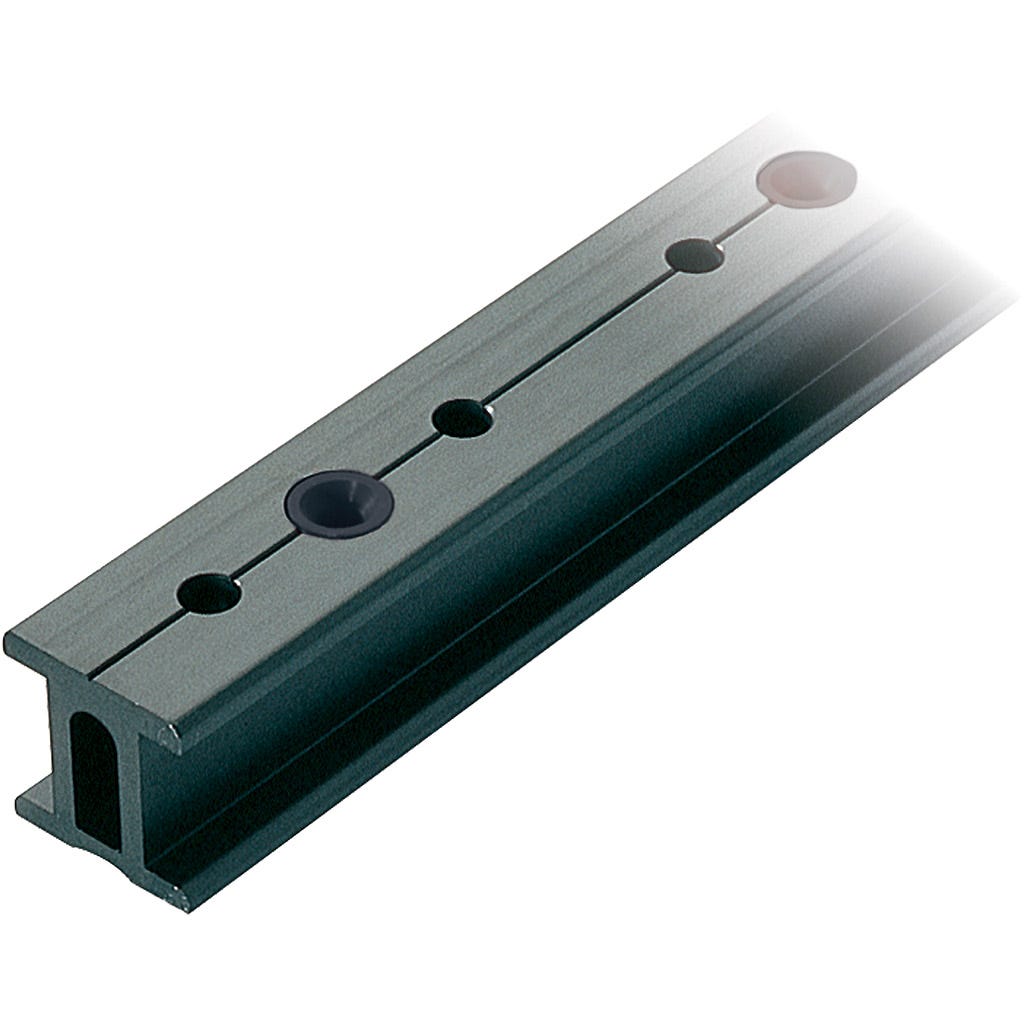

Ronstan, Series 32 I-Track, 1m, RC6320

Description

The Ronstan Series 32 I-Track, 1m (RC6320) is designed for use with 6mm (1/4") countersunk fasteners at 100mm (3 15/16") centers. It features stop holes at 50mm (2") centers and includes RC7250-INS insulating inserts to prevent corrosion between the track and fasteners. The minimum curve radius for a 76mm (3") car is 500mm (20") for both horizontal 'A' and 'B' curves. However, for a 157mm (6 3/16") car, it is only suitable for the 'A' curve radius of 500mm (20").

Specifications

• Length (mm): 996

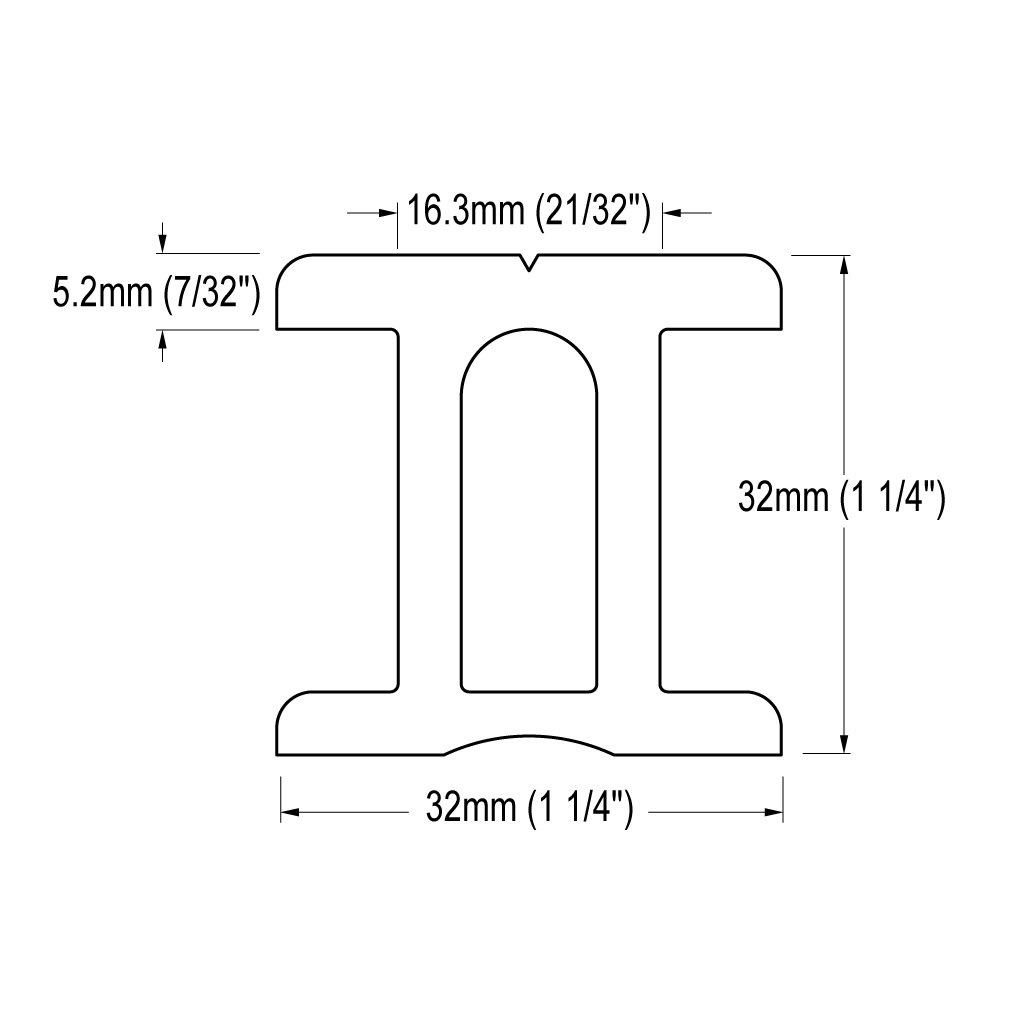

• Track Profile: I-Track
• Weight (g): 1210
• Width (mm): 32

Notes: For standard length track rails, as delivered from the manufacturer, the centre of the last mounting hole at each end of the track rail is located at 48mm (1 29/32”) from the end, and the distance between fasteners across a track join will be 96mm (3 25/32”). The distance between the two fasteners at the end of each track rail, whether across a join or at an end, must never exceed 100mm (3 15/16”).
