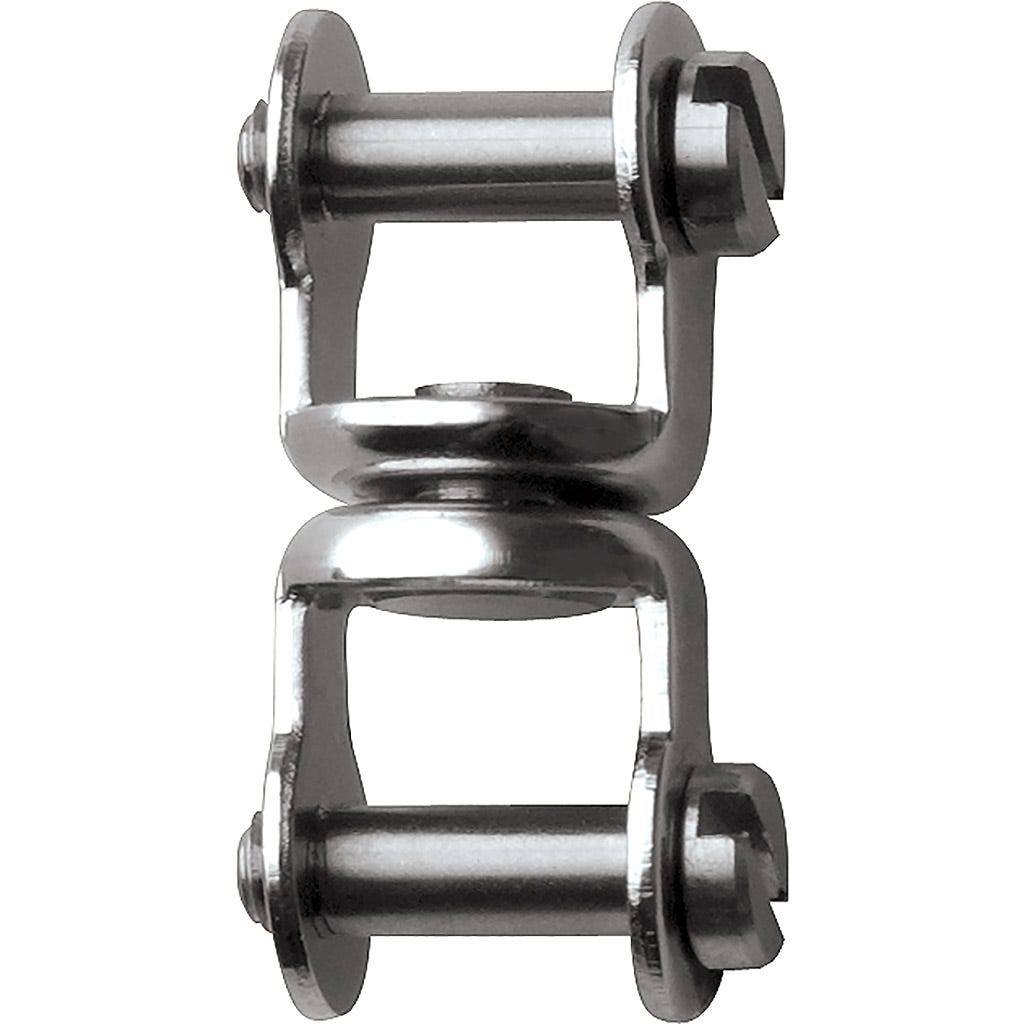

Ronstan, Stainless Steel Swivel Shackle, 5/32" Pins, Slotted Head, RF576
Varenr.: 68710576
Leveringstid: 2-3 Dage
Couldn't load pickup availability
Description
The Ronstan Stainless Steel Swivel Shackle, model RF576, is designed for use with blocks and rigging systems to provide articulation and rotation. It is not suitable for high-speed rotating applications. The shackle is constructed from Grade 316 stainless steel for both the body and pins, ensuring durability and resistance to corrosion.
Specifications
- A (mm): 4
- B (mm): 10
- C (mm): 22
- D (mm): 6
- P.L. B.L. (kg): 350
- Shackle Pin Product No.: RF31
- U.D.L. B.L. (kg): 500
- Weight (g): 10
Notes:: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
