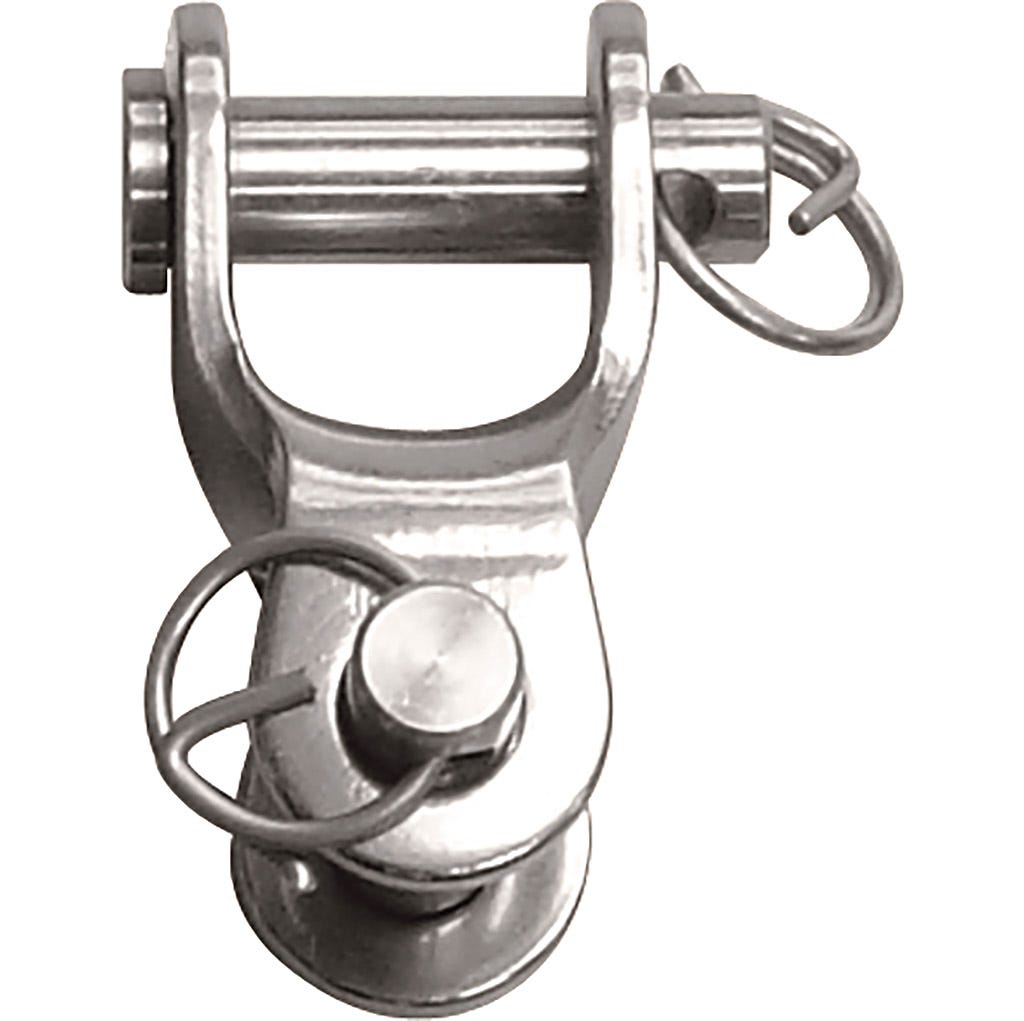

Ronstan, Stainless Steel Two Way Link, RF815
Varenr.: 65502815
Leveringstid: 2-3 Dage
Couldn't load pickup availability
Description
The Ronstan Stainless Steel Two Way Link features 5mm (3/16") pins and a split ring for added security. It is designed to suit RS006000 and RS006010. The pins and body are made from Grade 316 stainless steel, ensuring durability and resistance to corrosion. Product number: RF815.

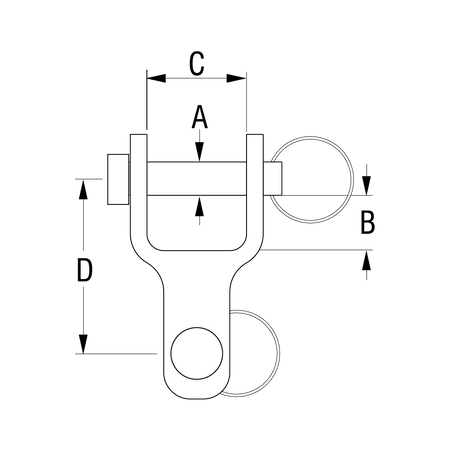

Specifications
- A (mm) – Pin diameter: 5
- B (mm) – Width: 5.2
- C (mm) – Length: 10
- D (mm) – Overall length: 19
- P.L. B.L. (kg): 900
- Pin Ø (mm): 5
- Shackle Pin Product No.: -
- U.D.L. B.L. (kg): 1100
- Weight (g): 14
Notes: UDL BL – The “Uniformly Distributed Load” breaking load of the shackle; the load is applied across the full span of the shackle pin. PL BL – The “Point Load” breaking load of the shackle; the load is only applied at the centre or one side of the shackle pin.
