Ultraflex, steering system T67, black (35809J)

Description

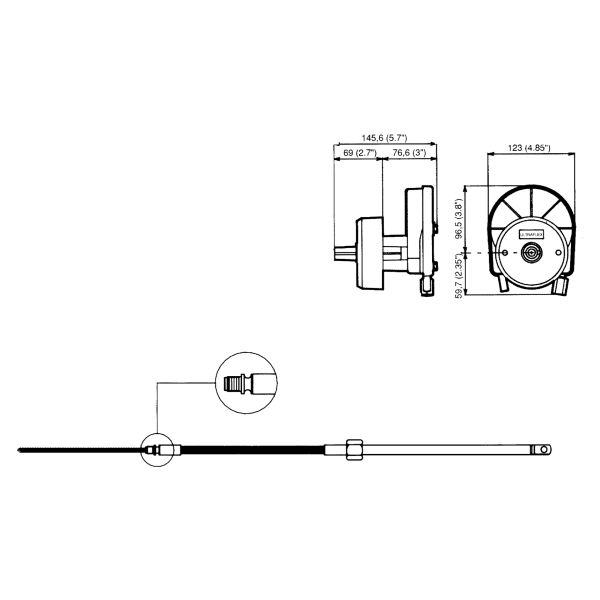

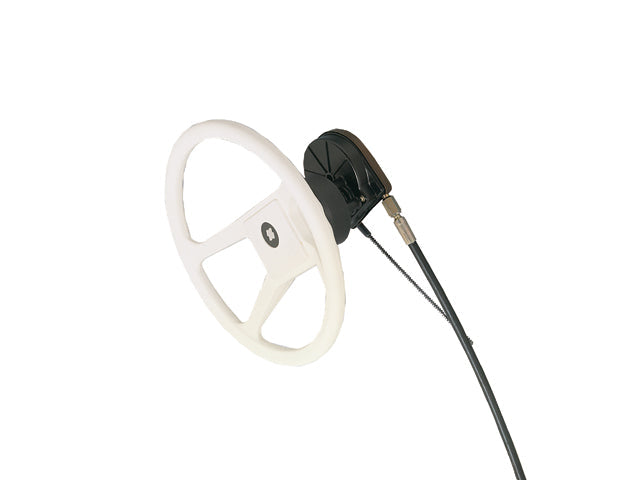

A complete steering system must consist of several components, including steering cable, wheel, and motor connections, which can be ordered separately. The system is designed with corrosion-resistant materials and stainless steel ends that meet ABYC safety requirements. The steering hub is black with a 90° housing and offers four alternative mounting options for optimal cable routing.

• Steering system T67
• M58 - steering cable available in lengths at intervals of 30.5 cm (1 foot) (depending on required length can be ordered separately)
• Steering wheel (can be ordered separately as desired)
• Connection pieces for the motor (can be ordered separately depending on motor type)
• All cable ends of stainless steel according to ABYC safety requirements
• Corrosion-resistant materials

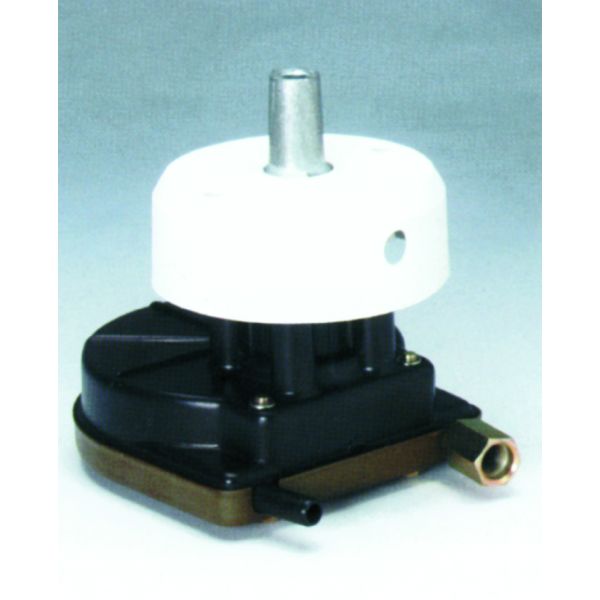

• Steering hub 90° with black housing
• Four alternative mounting options for optimal cable routing
• Approx. 2.5 wheel turns from port to starboard
• Stroke length 230 mm
• Maximum diameter of the steering wheel Ø 380 mm
• Minimum bending radius of the steering cables 200 mm
• Maximum force on the tiller 1200 N (120 kg)
• Norske Veritas approved
• Complies with standard 94/25 EEC/EN 28848
• Available in basic kit Rotech IV
• Application: For use with outboard motors up to 40 kW (55 HP).

Specifications

• Brand: Ultraflex
• Item no.: 75235809
• EAN: 8031164358098
• MPN: 35809J
• Motor capacity: 55 hp
• Color: Black
• Packaging unit: 1 pcs
