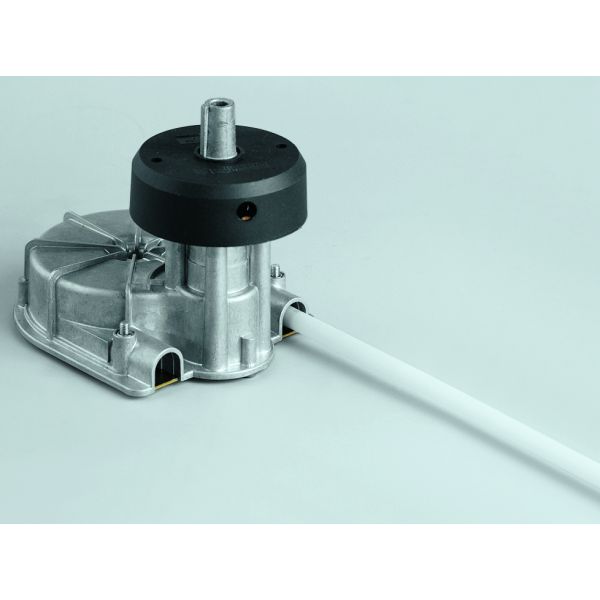

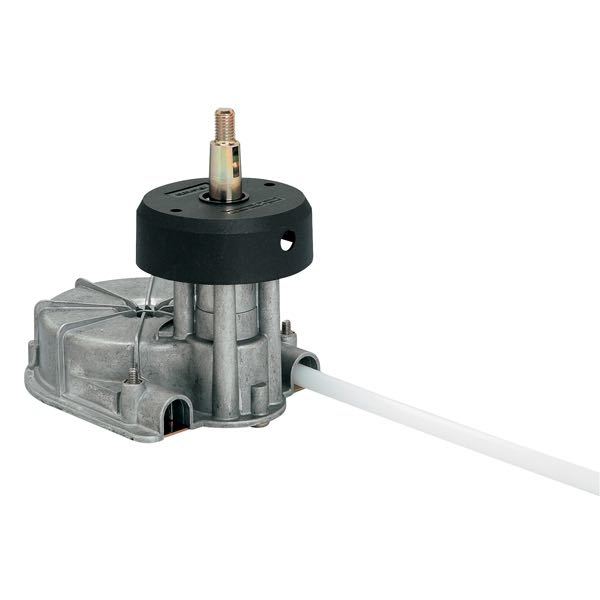

Ultraflex, steering system T85

Description

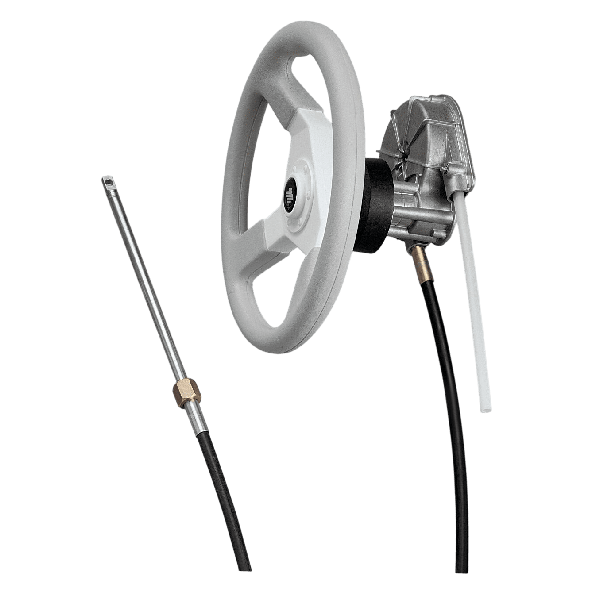

A complete steering system consists of several components that can be customized as needed. The T85 steering system is designed to fit into tight spaces and is made of corrosion-resistant materials.

• Steering system T85
• Steering cable M66 - available in lengths of 30.5 cm (1 foot) (can be ordered separately depending on the required length)
• Steering wheel (can be ordered separately as desired)
• Connection parts for the engine (can be ordered separately depending on the engine type)
• All cable ends in stainless steel according to ABYC safety requirements
• Can be used where space is limited
• Approximately 3 steering wheel turns from port to starboard
• Stroke length 228 mm
• Maximum diameter of the steering wheel Ø 406 mm
• Minimum bending radius of the steering cables 200 mm
• Minimal backlash

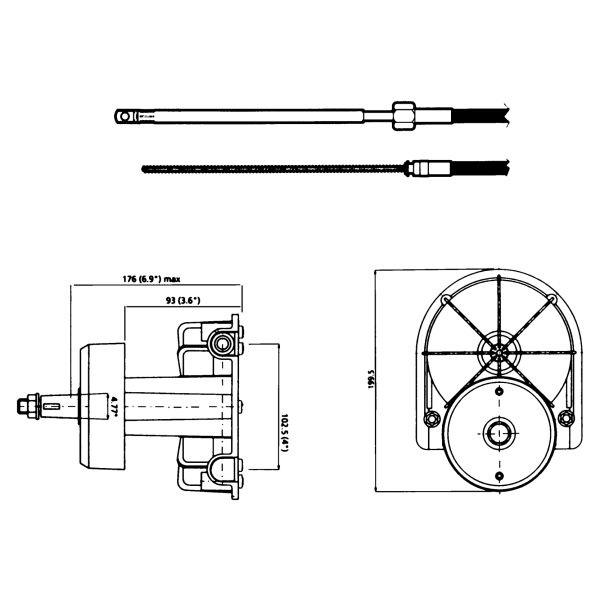

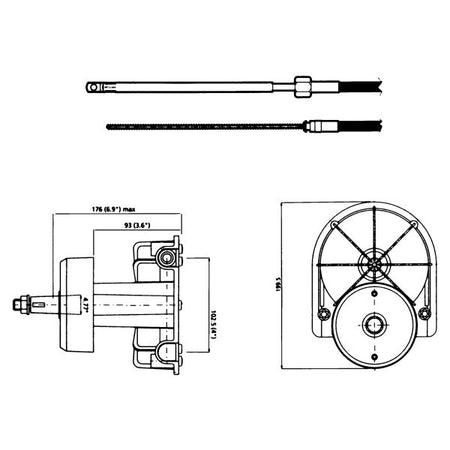

• Compact installation dimensions
• Complies with safety requirements of ABYC and standard 94/25 CE/EN 28848
• T85 steering system must not be used on boats with engines that exceed the maximum number of kW/hp prescribed for that type of boat.

Specifications

• Brand: Ultraflex
• Item no.: 75235812
• EAN: 8031164384394
• MPN: 38439Z
• Packaging unit: 1 pcs
