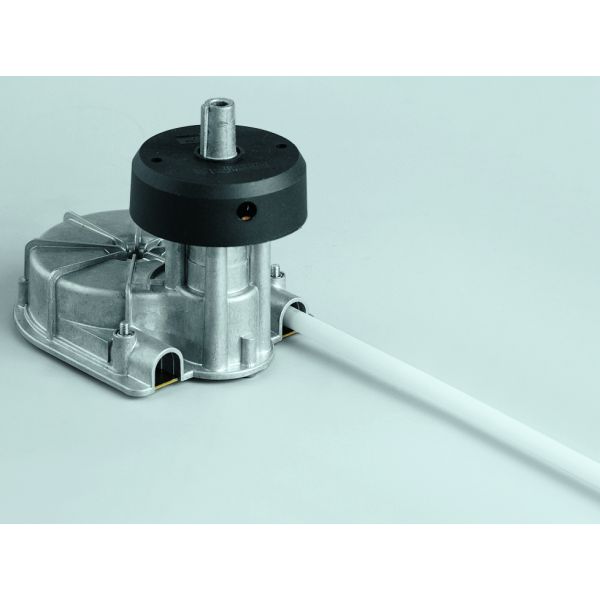

Ultraflex, steering system T85W, white

Description

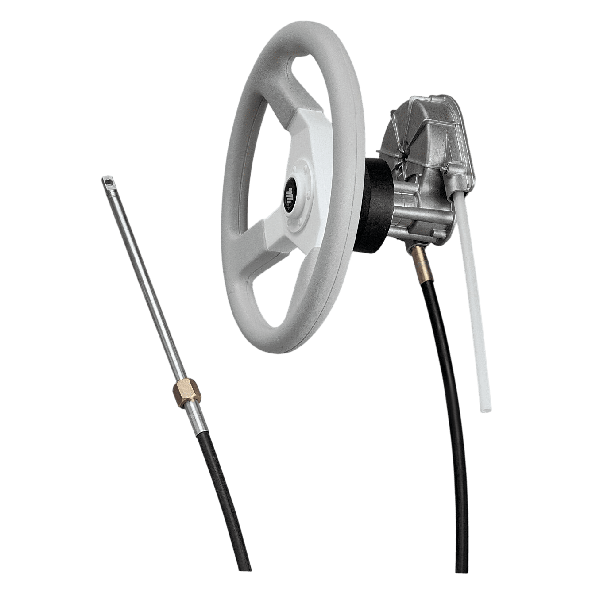

A complete steering system must consist of several components, including the T85 steering system. This system is suitable for areas with limited space and meets the safety requirements of ABYC and standard 94/25 CE/EN 28848.

• Steering system T85
• Steering cable M66 - available separately in lengths of 30.5 cm (1 foot) depending on the required length
• Steering wheel - available separately
• Connection parts for the engine - available separately depending on the engine type
• All cable ends are made of stainless steel according to ABYC safety requirements
• Corrosion-resistant materials
• Approximately 3 turns of the wheel from port to starboard
• Stroke: 228 mm
• Maximum diameter of the steering wheel: Ø 406 mm
• Minimum bending radius of the steering cables: 200 mm
• Minimal backlash

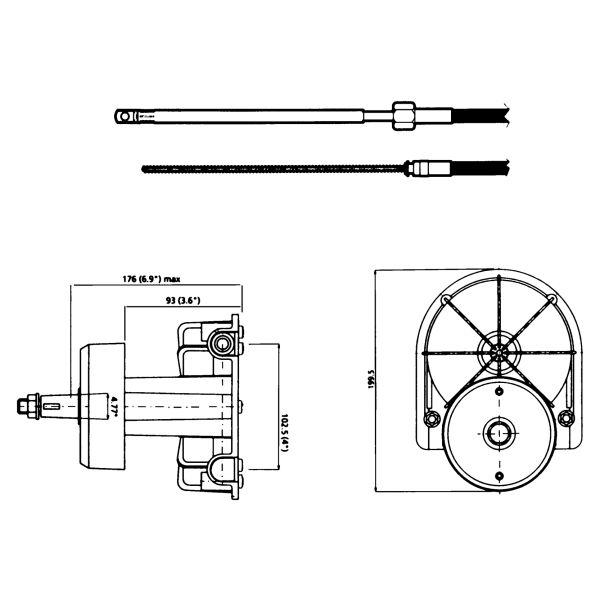

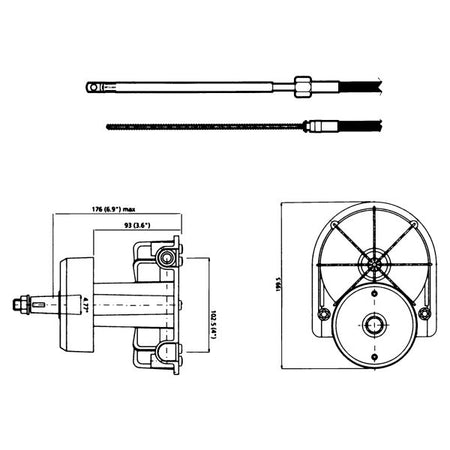

• Compact installation dimensions
• The T85 steering system must not be used on boats with engines that exceed the maximum number of kW/hp prescribed for that type of boat

Specifications

• Brand: Ultraflex
• Item no.: 75235813
• EAN: 8031164392139
• MPN: 39213M
• Packaging unit: 1 pcs
