Ultraflex, steering system T67W, black (37925M)

Description

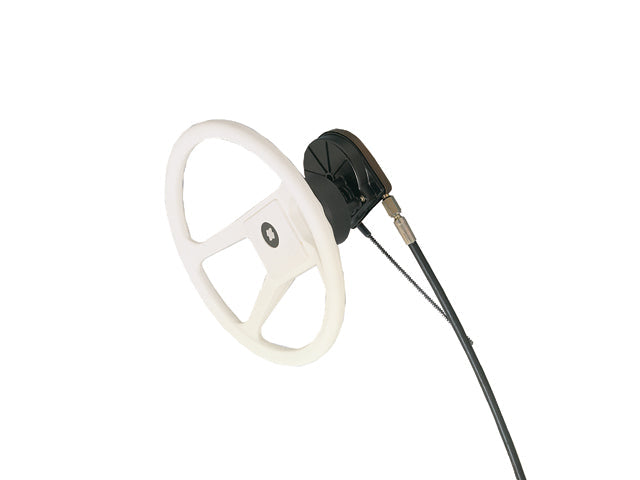

This complete steering system is designed for use with outboard motors up to 40 kW (55 hp). It includes a T67 steering unit and is compatible with M58 steering cables, which can be ordered separately in lengths of 30.5 cm. The steering wheel and motor connection parts can also be ordered separately depending on the motor type.

• All cable ends are made of stainless steel according to ABYC safety requirements
• Corrosion-resistant materials
• 90° steering hub with black housing
• Four alternative mounting options for optimal cable routing
• Approximately 2.5 turns of the wheel from port to starboard
• Stroke length 230 mm
• Maximum diameter of the steering wheel Ø 380 mm
• Minimum bending radius of the steering cables 200 mm
• Maximum force on the tiller 1200 N (120 kg)
• Approved by Norske Veritas
• Complies with standard 94/25 EEC/EN 28848
• Available in basic kit Rotech IV

Specifications

• Brand: Ultraflex
• Item no.: 75235810
• EAN: 8031164379253
• MPN: 37925M
• Motor capacity: 55 hp
• Color: Black
• Packaging unit: 1 pcs
