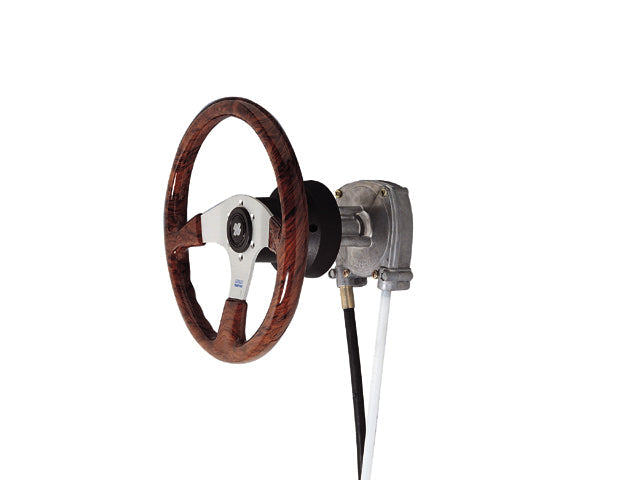

Ultraflex, single cable steering T71FC (38867H)

Description

A complete steering system must consist of a T71FC or T72FC steering. This system can be used even where space is limited, and it can be installed at an angle of 90° or 20°.

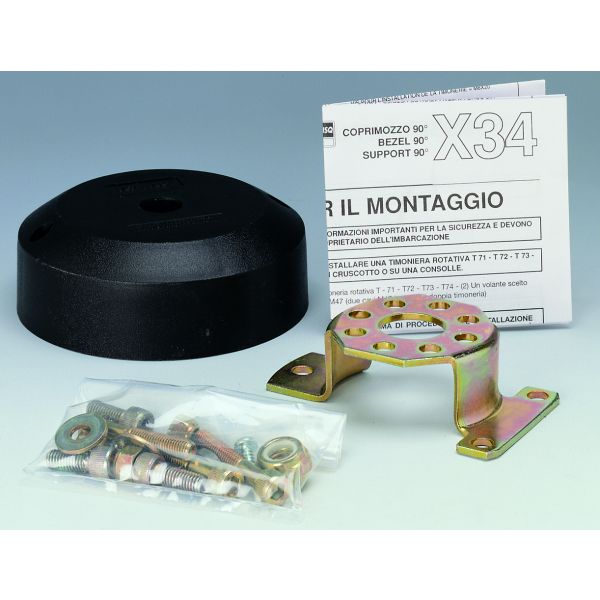

• Mounting plate can be ordered separately
• Steering cable M66 available in lengths of 30.5 cm (1 foot) and can be ordered separately depending on the required length
• Steering wheel is optional and can be ordered separately
• Connection parts for the engine can be ordered separately depending on the type of engine
• All cable ends are stainless steel according to ABYC safety requirements
• Corrosion-resistant materials
• Approx. 3.8 turns of the wheel from port to starboard
• Stroke length: 228 mm
• Maximum diameter of the steering wheel: Ø 406 mm
• Minimum bending radius of the steering cables: 200 mm
• Minimal backlash
• Compact installation dimensions
• Complies with ABYC safety requirements and norm 94/25 CE/EN 28848
• Available in base kit Rotech 1
• For boats faster than 50 miles per hour, a hydraulic steering system is recommended

Specifications

• Brand: Ultraflex
• Item no.: 75236651
• EAN: 8031164388675
• MPN: 38867H
• Packaging unit: 1 pcs
