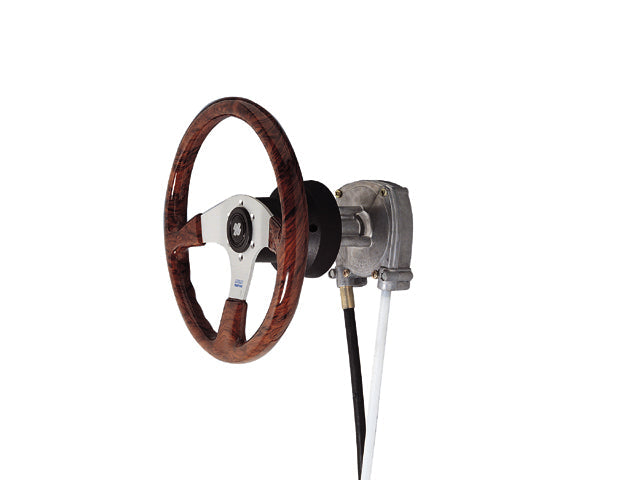

Ultraflex, steering system T72FC for 2 cables (38868K)

Description

A complete steering system must consist of T71FC or T72FC steering equipment. This system can be installed even in tight spaces and is compatible with various components that can be ordered separately.

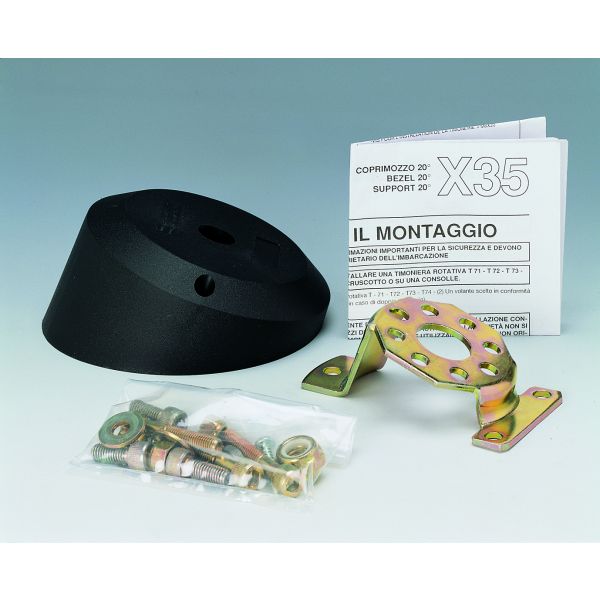

• Mounting plate can be ordered separately
• Steering cable M66 available in lengths of 30.5 cm (1 foot) and can be ordered depending on the required length
• Steering wheel is optional and can be ordered separately
• Connection parts for the engine can be ordered depending on the type of engine
• All cable ends are made of stainless steel according to ABYC safety requirements
• Corrosion-resistant materials
• Can be used where space is limited
• Installation possible at 90° or 20° angle
• Approximately 3.8 steering wheel turns from port to starboard
• Stroke: 228 mm
• Maximum diameter of the steering wheel: Ø 406 mm
• Minimum bending radius of the steering cables: 200 mm
• Minimal backlash

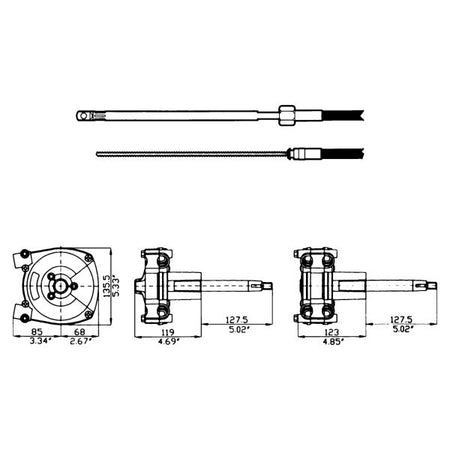

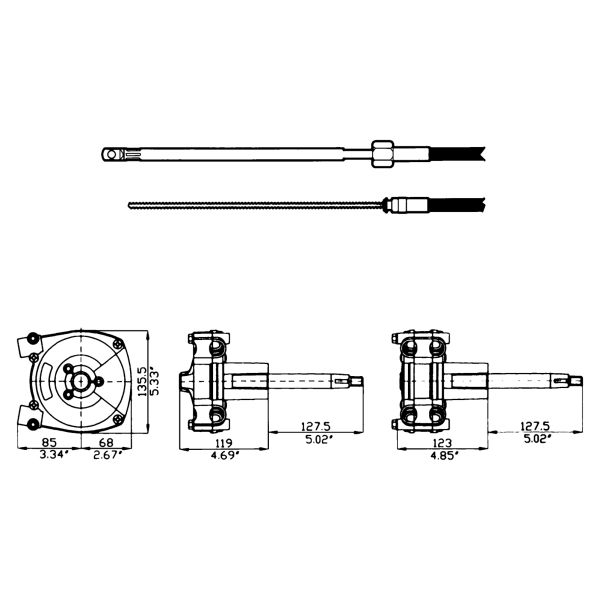

• Compact installation dimensions
• In accordance with ABYC safety requirements and standard 94/25 CE/EN 28848
• Available in basic kit Rotech 1
• For boats faster than 50 miles per hour, a hydraulic steering system is recommended

Specifications

• Brand: Ultraflex
• Item no.: 75236653
• EAN: 8031164388682
• MPN: 38868K
• Packaging unit: 1 pcs
