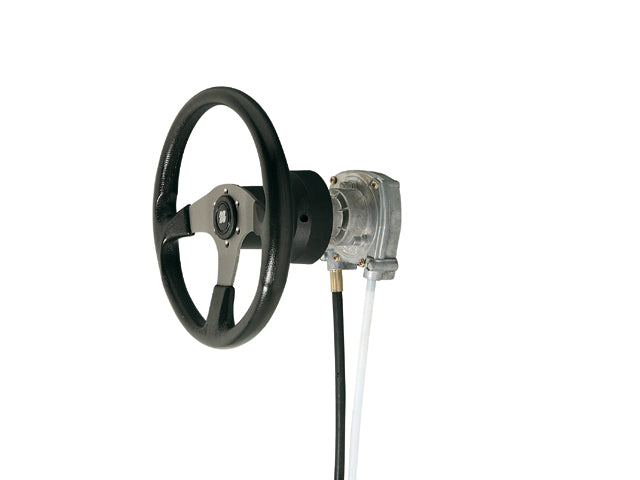

Ultraflex, steering cable T73NRFC

Description

The T73NRFC steering system is ideal for large outboard motors and large propeller surfaces. The patented anti-feedback system makes steering light and safe by eliminating the need for constant steering correction. The system is compact and suitable for places with limited space.

• Mounting plate can be purchased separately
• Steering cable M66 available in lengths of 30.5 cm (1 foot), two cables required for T74NRFC system
• Steering wheel can be purchased separately
• Connection parts for the engine can be purchased separately depending on engine type
• Standard shaft 3/4" tapered
• All cable ends in stainless steel according to ABYC safety requirements
• Made of corrosion-resistant materials
• Installation possible at 90° or 20° angle
• Approx. 3.8 steering wheel turns from port to starboard
• Stroke length 228 mm
• Maximum diameter of steering wheel Ø 406 mm
• Minimum bending radius of steering cables 200 mm
• Meets ABYC safety requirements and standard 94/25 CE/EN 28848
• Hydraulic steering system recommended for boats faster than 50 miles per hour

Specifications

• Brand: Ultraflex
• Item no.: 75236917
• EAN: 8031164388699
• MPN: 38869M
• Packaging unit: 1 pcs
