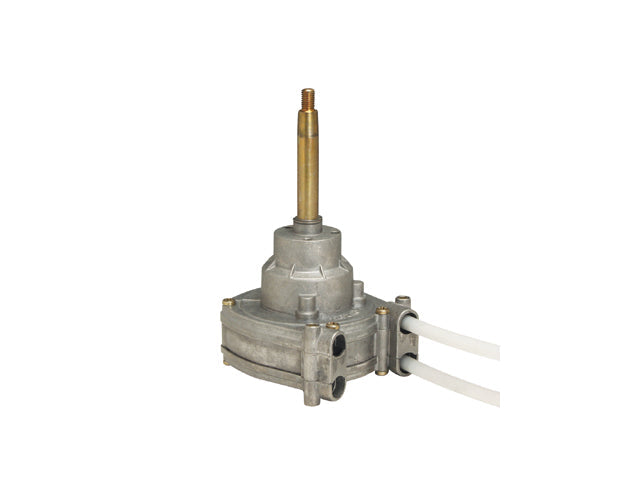

Ultraflex, steering system for 2 cables (38870W)

Description

This steering system is designed to handle two cables and is ideal for large outboard motors and large propeller surfaces. The system includes a patented anti-feedback system that eliminates the need for constant steering correction caused by propeller rotation, making steering light and safe.

• Steering system T73NRFC or T74NRFC
• Mounting plate can be purchased separately
• Steering cable M66 - available in lengths of 30.5 cm (1 foot), two cables are required for T74NRFC (can be purchased separately depending on required length)
• Steering wheel can be purchased separately
• Connection pieces for the motor can be purchased separately depending on motor type
• Patented anti-feedback system
• Ideal for large outboard motors and large propeller surfaces
• Very compact design
• Suitable for places with limited space
• Standard shaft 3/4" tapered
• All cable ends in stainless steel according to ABYC safety requirements
• Made exclusively from corrosion-resistant materials
• Installation possible at 90° or 20° angle
• Approximately 3.8 steering wheel turns from port to starboard
• Stroke length 228 mm
• Maximum steering wheel diameter Ø 406 mm
• Minimum bending radius for steering cables 200 mm
• In accordance with ABYC safety requirements and standard 94/25 CE/EN 28848
• Hydraulic steering system recommended for boats faster than 50 miles per hour

Specifications

• Brand: Ultraflex
• Item no.: 75236918
• EAN: 8031164388705
• MPN: 38870W
• Packaging unit: 1 pcs
