Ultraflex, T91 helm assembly
Regular price
€136,95
incl. VAT
Regular price
-42%
€234,95
Sale price
€136,95
incl. VAT
Varenr.: 75239001
På lager (10 stk)
Leveringstid: 2-3 Dage
Couldn't load pickup availability
Description

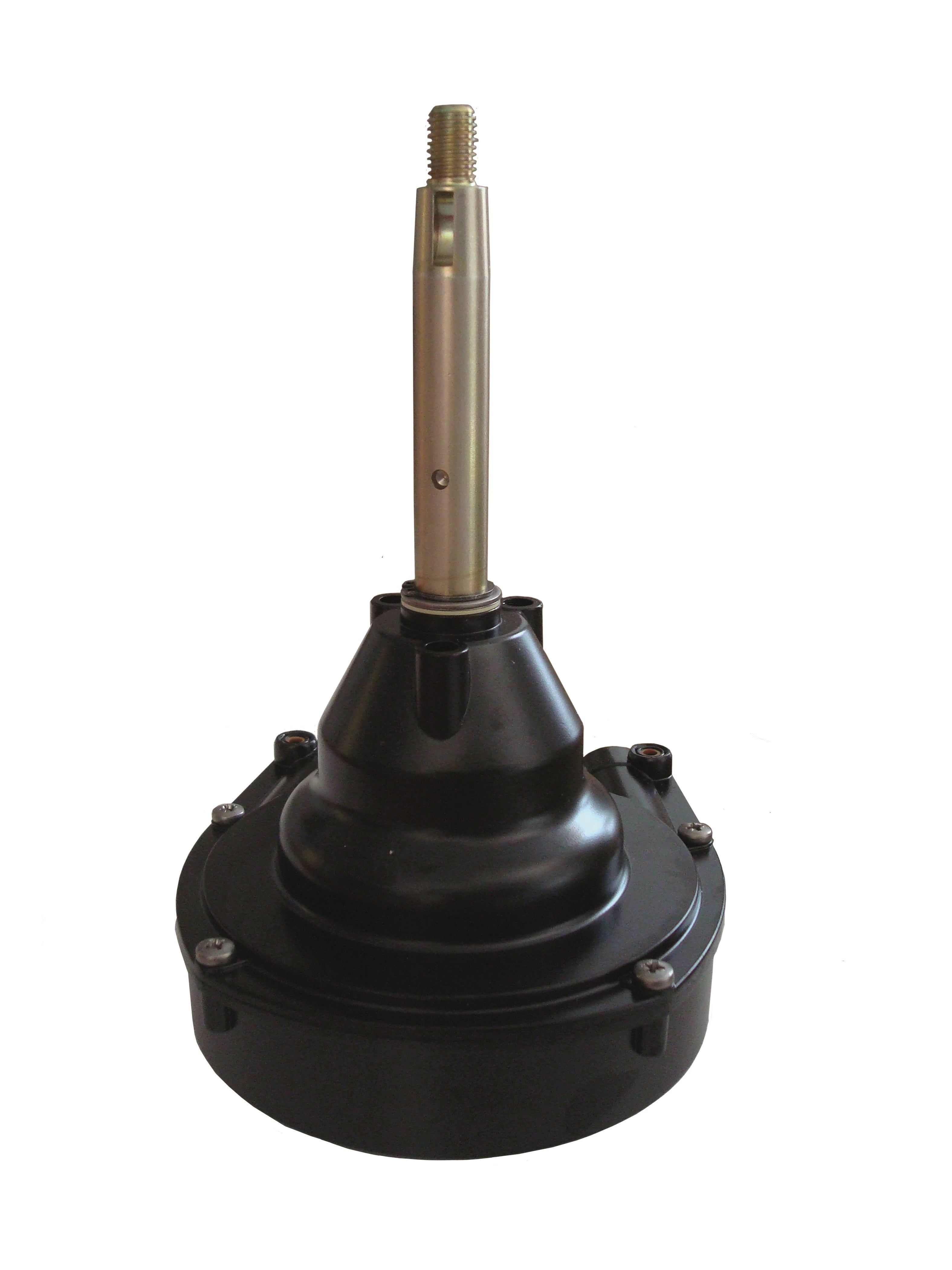

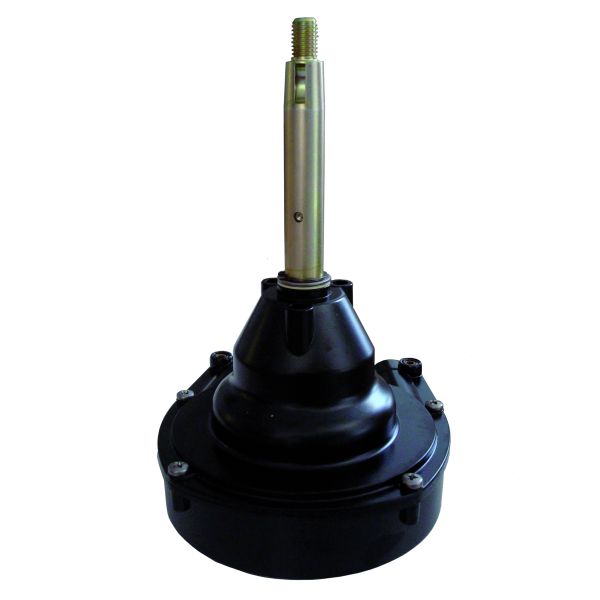

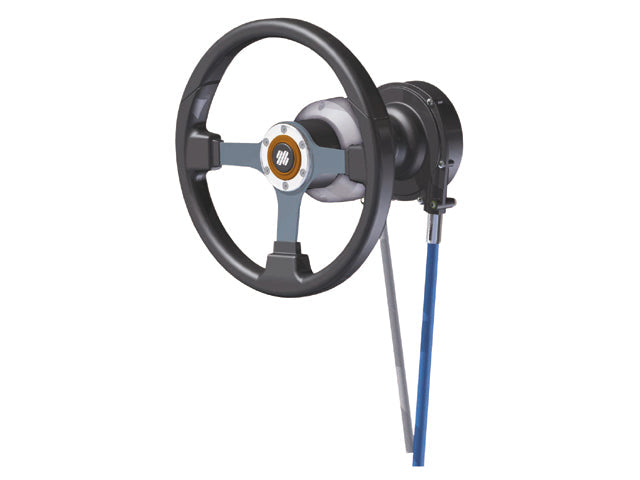

The T91 helm assembly from Ultraflex is a complete mechanical steering system that combines the T91 helm with the M90 cable for optimal performance. The system is known for minimal backlash and high efficiency, comparable to hydraulic systems.
- Mounting plate can be ordered separately
- M90 steering cable
- Steering wheel can be ordered separately
- Connection parts for the engine can be ordered separately depending on engine type
- Quick and simple connection with patented fittings
- Corrosion-resistant materials
- Suitable for areas with limited space
- Installation possible at 90 or 20 degree angle
- Approximately 4.2 turns from port to starboard
- Stroke length 228 mm
- Maximum steering wheel diameter Ø 406 mm
- Minimum bending radius of steering cable 150 mm
- Minimal backlash

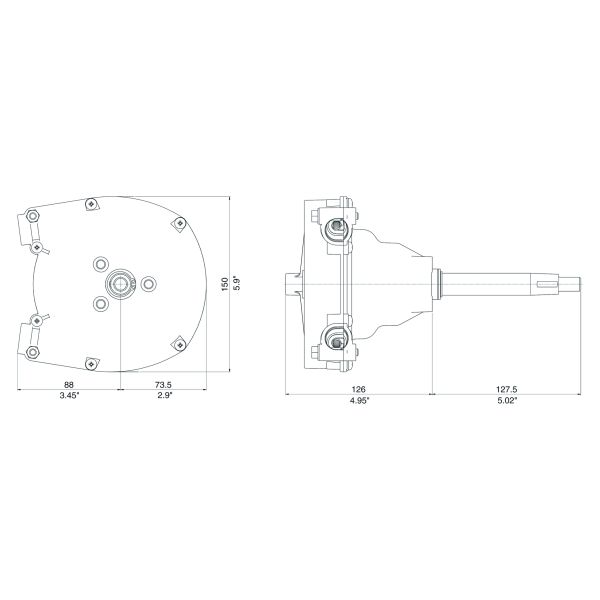

- Compact installation dimensions
- Meets safety requirements of ABYC P17 and EN28848
- Available in Fourtech kit
- For boats faster than 50 miles per hour, a hydraulic steering system is recommended
Specifications
- Brand: Ultraflex
- Item no.: 75239001
- EAN: 8031164426476
- MPN: 42647S
- Packaging unit: 1 pcs
