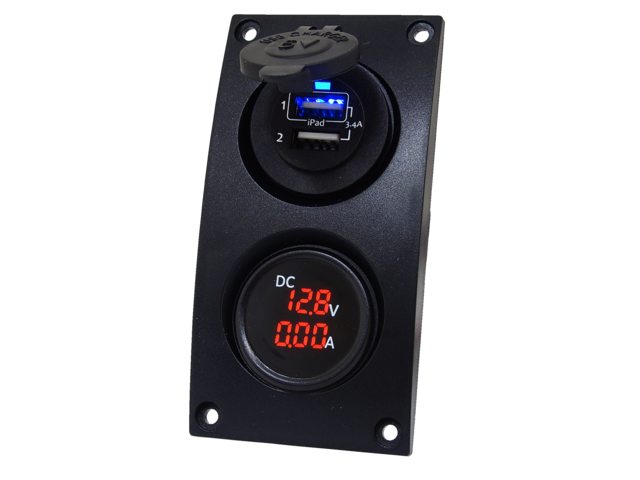

Talamex, switch panel with double USB & digital volt- + ammeter, 114 mm x 58 mm

Description

This add-on panel features both a volt and ammeter, as well as a double USB socket. The curved add-on panels can be easily connected to the curved switch panels.

• USB socket with high output amperage, making them suitable for the latest smartphones and tablets.
• Saves up to 16% charging time compared to 2.1A models.
• Comes with a cover cap and flush mount frame.
• Input 12-24V, output voltage 5V, output amperage 4.8A (2x2.4A).
• LED indicator, protected against short circuit and overheating.
• IP66 waterproof with well-sealed cover cap.
• Digital volt and ammeter display DC voltage and amp consumption.
• Voltage 4.5-30V DC, ampere 0-15A DC, consumption <30mA.
• Refresh rate 5 times per second, voltage resolution 0.01V (input <10V) / 10.0V (input >10V).
• Diameter Ø 36.60mm, total height 17.5mm (without flush mount frame).

Specifications

• Brand: Talamex
• Item no.: 14576026
• EAN: 8711497647662
• Height: 114 mm
• Width: 58 mm
• Packaging unit: 1 pcs
