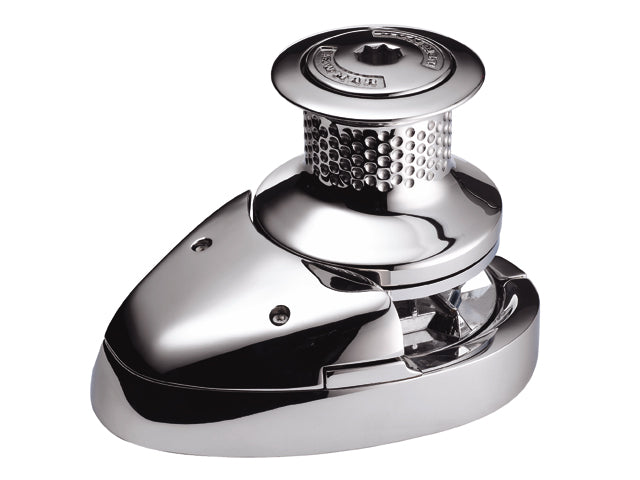

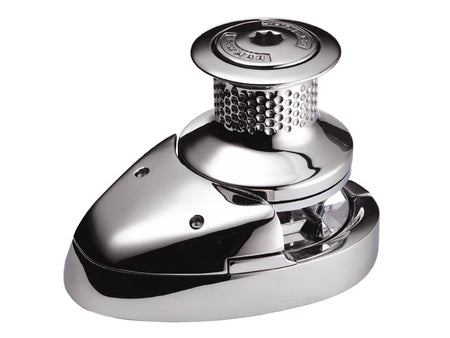

Lewmar, stainless steel windlass, 221x168 mm (6672221108-139)

Description

The V1, V2, and V3 windlasses are the first compact vertical windlasses made of stainless steel for motor and sailing yachts. They feature a robust and reliable gear mechanism ensuring maximum performance and control. With a simple push of a button, you can retrieve your rope/chain or chain-only anchor lines. These Lewmar windlasses are equipped with FastFit™ for easy installation and proper adjustment.

• Comes complete with deck unit, motor/gearbox, chain wheel, relay, circuit breaker, and dashboard switch.
• Larger models can be found through our sales or at www.lewmar.com.
• Manual Override (MO): This windlass is standard equipped with manual emergency operation.

Specifications

• Brand: Lewmar
• Model: V3 Gypsy/Drum
• EAN: 743683328312
• MPN: 6672221108-139
• Height: 168 mm
• Length: 221 mm
• Width: 157 mm
• Power output (Watt): 1000 W
• Voltage: 12 V
• Weight: 24.5 kg
• Pulling force: 1025 kg
• Workload: 257 daN
• Line speed: 28 m/mn
• Fuse: 110 A
• For Chain size: 10 mm
• Drum: Yes
• Material: Stainless Steel
• Chain Norm: DIN766
• Packaging unit: 1 pcs
