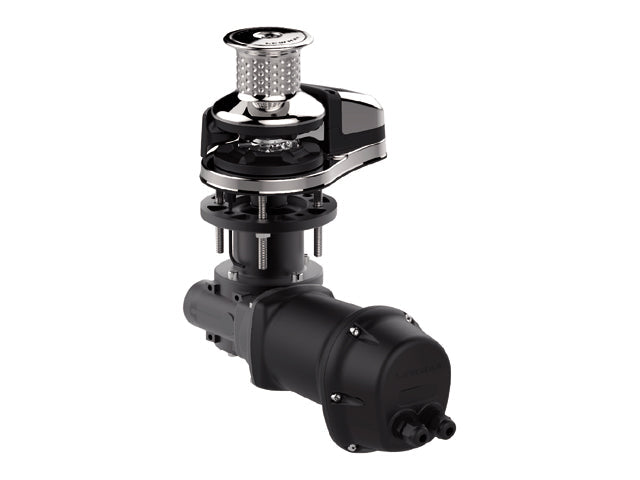

Lewmar, vertical windlass stainless steel, 8 mm (69100027)

Description

The VX1, VX2, and VX3 series of vertical windlasses feature the latest lightweight technologies and are easy to install. The deck unit is available with a combination of chainwheel and capstan (GD) and is made from stainless steel and composite materials.

• Standard with IP68 and spark-free motor protection
• Available with various motors: 500W, 700W, 1000W, 1500W
• Lighter weight due to composite parts
• Worm gear transmission for excellent reliability and safety
• For boats from 8.5 - 15 meters (28ft - 50ft)
• Set includes: deck unit, motor/gearbox, relay, chainwheel, and sensor for chain counter

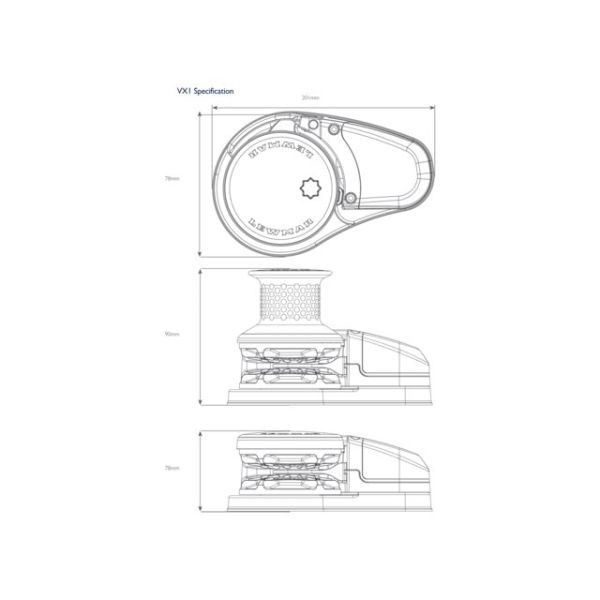

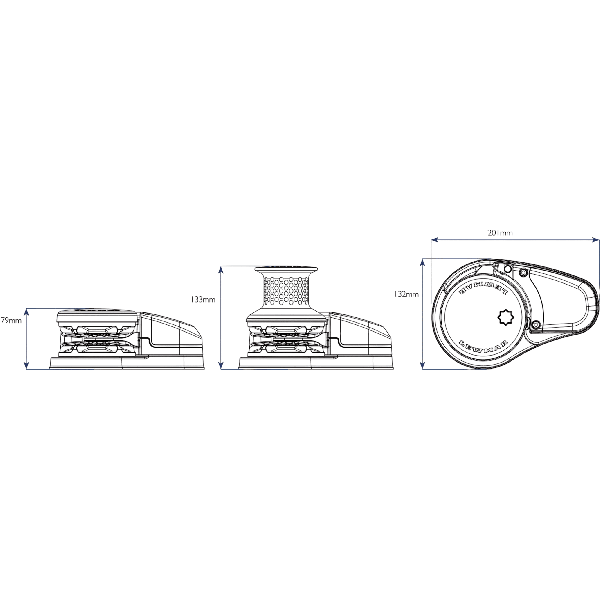

Specifications

• Brand: Lewmar
• Model: VX1 GD
• Item no.: 76412034
• EAN: 743683312946
• MPN: 69100027
• Length: 201 mm
• Width: 132 mm
• Power output (Watt): 500 W
• Voltage: 12 V
• Weight: 13.5 kg
• Pulling force: 675 kg
• Workload: 169 daN
• Line speed: 25 m/mn
• Fuse: 70 A
• For Chain size: 8 mm
• IP-ratings: IP68
• Suitable for boat length (range): 8.5 - 15 m
• Material: Stainless steel, composite
• Chain Norm: DIN766
