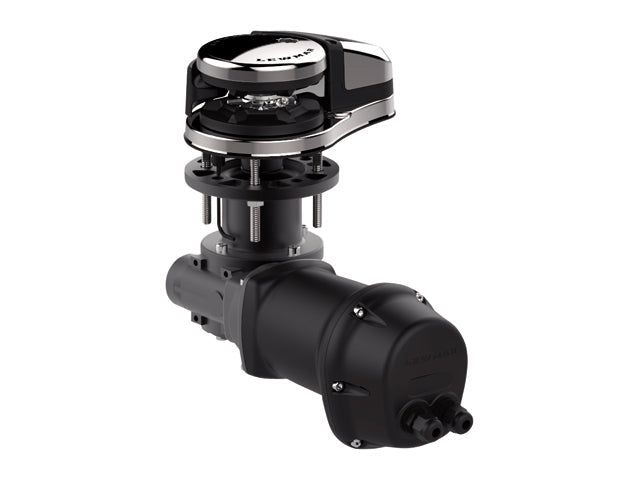

Lewmar, windlass stainless steel, 8 mm (69120032)

Description

The vertical windlasses in the VX series are equipped with the latest lightweight materials and are easy to install. The deck unit is available with a single chain gypsy (GO) and is made of stainless steel and composite parts.

• Standard with IP68 and spark-free motor protection
• Available with various motors: 500W, 700W, 1000W, 1500W
• Lighter weight due to composite parts
• Worm gear for excellent reliability and safety
• For boats from 8.5 - 15 meters (28ft - 50ft)
• The set consists of: deck unit, motor/gearbox, relay, chain gypsy, and sensor for chain counter. VX2 & VX3 series available in 24V on request.

Specifications

• Brand: Lewmar
• Model: VX2+ GO
• EAN: 743683313349
• MPN: 69120032

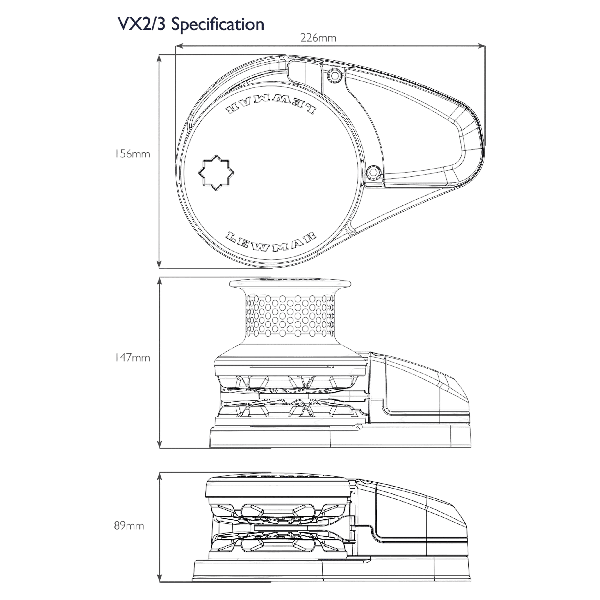

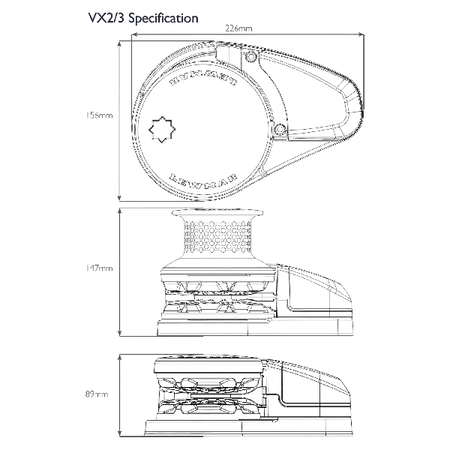

• Length: 226 mm
• Width: 156 mm
• Power output (Watt): 1000 W
• Voltage: 12 V
• Weight: 16.1 kg
• Pulling force: 1025 kg
• Workload: 257 daN
• Line speed: 39 m/mn
• Fuse: 110 A
• For Chain size: 8 mm
• IP-ratings: IP68
• Suitable for boat length (range): 8.5 - 15 m
• Material: Stainless Steel, Composite
• Chain Norm: DIN766
• Packaging unit: 1 pcs
