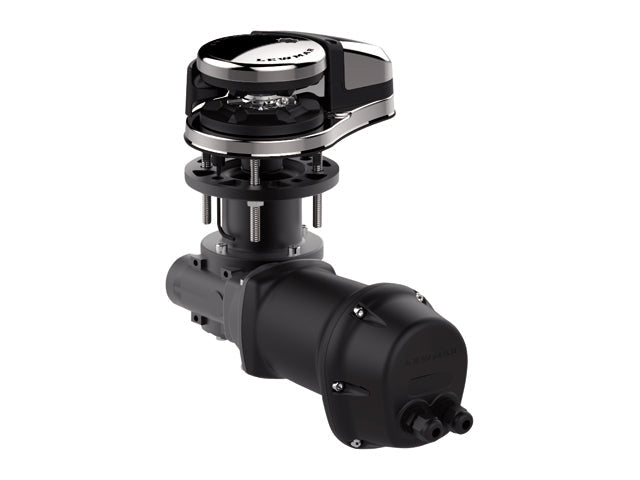

Lewmar, VX2 GO windlass stainless steel, 8 mm (69120022)

Description

The VX1, VX2, and VX3 series of vertical windlasses feature the latest lightweight technology and are easy to install. The deck unit is available with a single chain wheel (GO) and is made of stainless steel and composite parts.

• Standard with IP68 and spark-free motor protection
• Available with various motors: 500W, 700W, 1000W, 1500W
• Lighter weight due to composite parts
• Worm gear transmission for excellent reliability and safety
• Suitable for boats from 8.5 - 15 meters (28ft - 50ft)
• Set includes: deck unit, motor/gearbox, relay, chain wheel, and sensor for chain counter. VX2 & VX3 Series in 24V available on request.

Specifications

• Brand: Lewmar
• Model: VX2 GO
• EAN: 743683313318
• MPN: 69120022

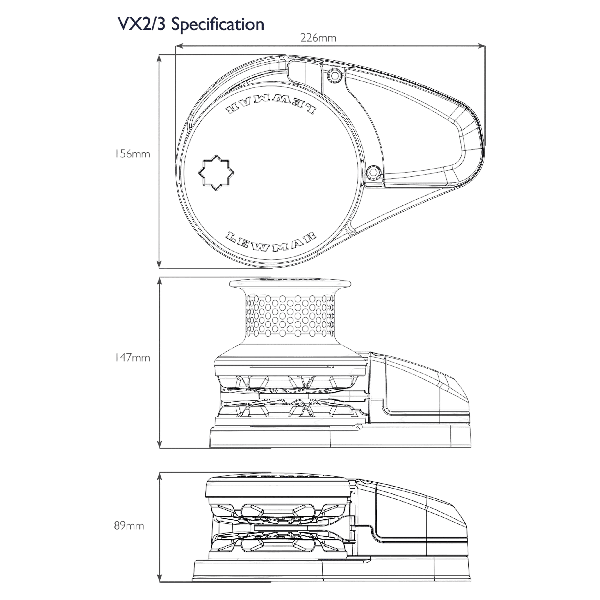

• Length: 226 mm
• Width: 156 mm
• Power output: 700 W
• Voltage: 12 V
• Weight: 13.9 kg
• Pulling force: 850 kg
• Workload: 213 daN
• Line speed: 29 m/mn
• Fuse: 90 A
• For Chain size: 8 mm
• IP-ratings: IP68
• Suitable for boat length (range): 8.5 - 15 m
• Material: Stainless Steel, Composite
• Chain Norm: DIN766
• Packaging unit: 1 pcs
