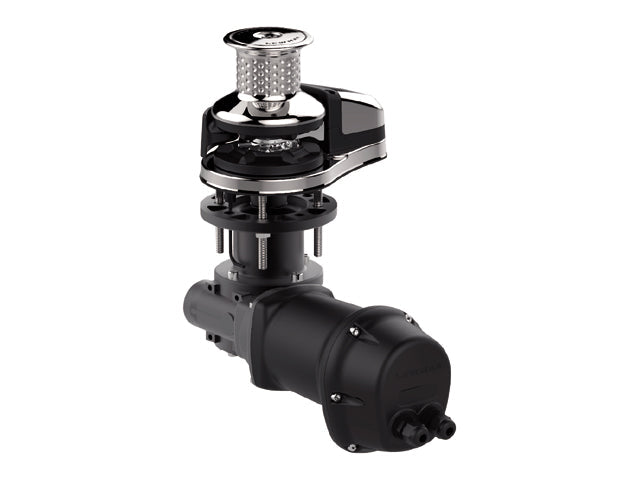

Lewmar, anchor winch stainless steel and composite, 226x156 mm (69120074)

Description

The VX3 series vertical windlasses are designed with the latest lightweight materials for easy installation. The unit comes with a combination of chainwheel and capstan and is made of stainless steel and composite materials.

• Standard with IP68 and spark-free motor protection
• Available with motors of 500W, 700W, 1000W, 1500W
• Lighter weight due to composite components
• Worm gear transmission for excellent reliability and safety
• Suitable for boats from 8.5 - 15 meters (28ft - 50ft)
• Set includes: deck unit, motor/gearbox, relay, chainwheel, and sensor for chain counter. VX2 & VX3 Series in 24V available on request.

Specifications

• Brand: Lewmar
• Model: VX3 GD
• Item no.: 76412044
• EAN: 743683313110
• MPN: 69120074
• Length: 226 mm
• Width: 156 mm
• Power output: 1500 W
• Voltage: 12 V
• Weight: 17.1 kg
• Pulling force: 1175 kg
• Workload: 294 daN
• Line speed: 40 m/mn
• Fuse: 110 A
• For Chain size: 10 mm
• IP-ratings: IP68
• Suitable for boat length (range): 8.5 - 15 m
• Material: Stainless Steel, Composite
• Chain Norm: DIN766
• Packaging unit: 1 pcs
