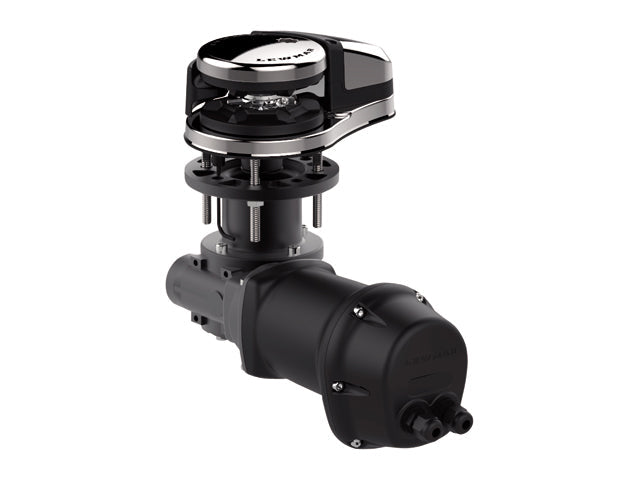

Lewmar, anchor winch stainless steel, 226 mm, (69120044)

Description

The VX1, 2, and 3 series vertical windlasses are equipped with the latest lightweight techniques and are easy to install. The deck unit is available with a single chain gypsy (GO) and is made of stainless steel and composite parts.

• Standard with IP68 and spark-free motor protection
• Available with various motors from 500W to 1500W
• Lighter in weight due to composite parts
• Worm gear transmission for excellent reliability and safety
• For boats from 8.5 - 15 meters (28ft - 50ft)
• Set includes: deck unit, motor/gearbox, relay, chain gypsy, and sensor for chain counter. VX2 & VX3 Series in 24V available on order

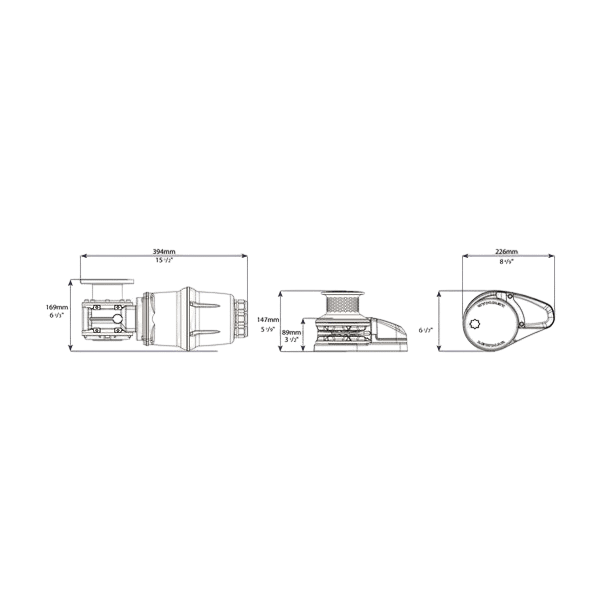

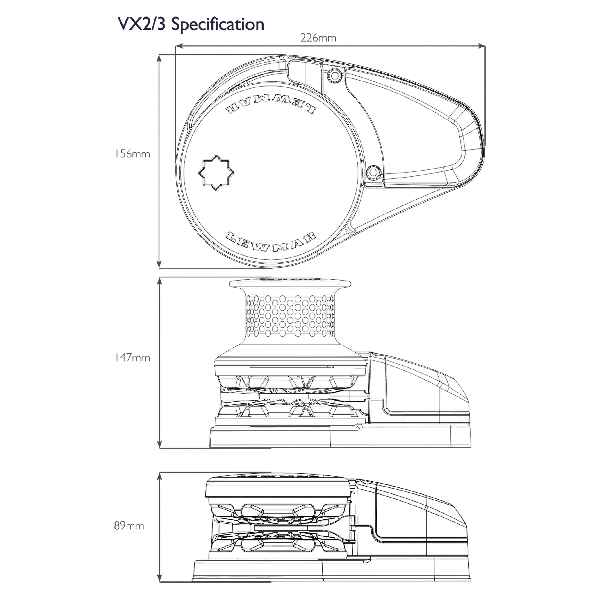

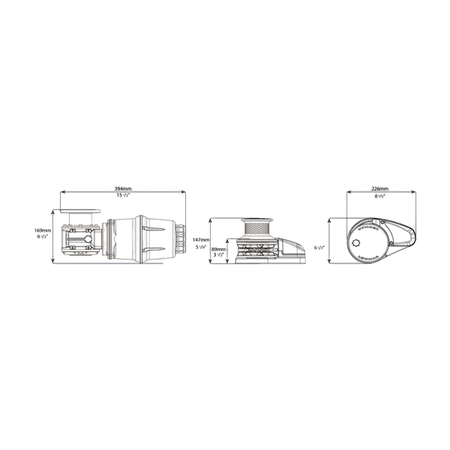

Specifications

• Brand: Lewmar
• Model: VX3 GO
• EAN: 743683313103
• MPN: 69120044
• Length: 226 mm
• Width: 156 mm
• Power output (Watt): 1500 W
• Voltage: 12 V
• Weight: 16.1 kg
• Pulling force: 1175 kg
• Workload: 294 daN
• Line speed: 40 m/mn
• Fuse: 110 A
• For Chain size: 10 mm
• IP-ratings: IP68
• Suitable for boat length (range): 8.5 - 15 m
• Material: Stainless Steel, Composite
• Chain Norm: DIN766
• Packaging unit: 1 pcs
