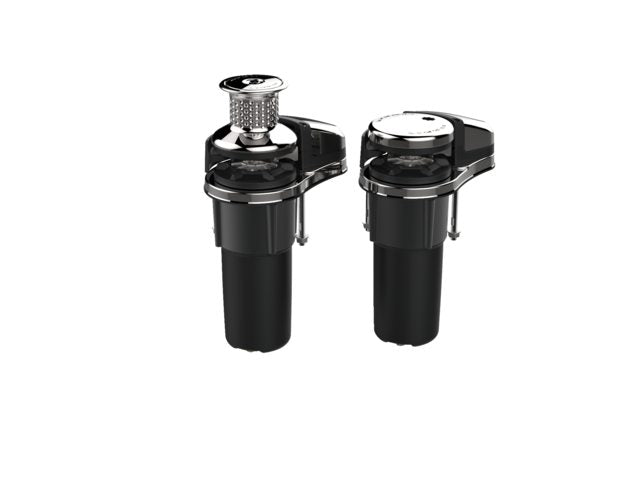

Lewmar, windlass stainless steel AISI 316, VX1L 500 GD (69100054)

€1.458,95 incl. VAT

Varenr.: 76412053

Weblager

Leveringstid: 0000-00-00

Description

The VX1L series features a motor placed vertically under the windlass, making it compact and efficient. It is easy to install and comes with a combination of chainwheel and capstan (GD). Made of stainless steel AISI 316 and composite materials.

  • Manual free fall
  • Same mounting dimensions as the V700
  • Available with motors of 500W and 800W
  • Standard with IP67 motor protection
  • The set consists of: deck unit, motor/gearbox, relay, chainwheel, and sensor for chain counter. Excludes switch and fuse.

Specifications

  • Brand: Lewmar
  • Model: VX1L 500 GD
  • Item no.: 76412053
  • MPN: 69100054
  • EAN: 743683334672
  • Power output: 500 W
  • Voltage: 12 V
  • Weight: 8.5 kg
  • Pulling force: 650 kg
  • Workload: 160 daN
  • Line speed: 20 m/mn
  • Fuse: 50 A
  • For Chain size: 6 mm, 7 mm
  • IP-ratings: IP67
  • Material: Stainless Steel AISI 316, Composite
  • Chain Norm: DIN766
  • Packaging unit: 1 pcs
