Lewmar, windlass stainless steel AISI 316, 8 mm (69100057)

€1.484,95 incl. VAT

Varenr.: 76412056

Weblager

Leveringstid: 0000-00-00

Description

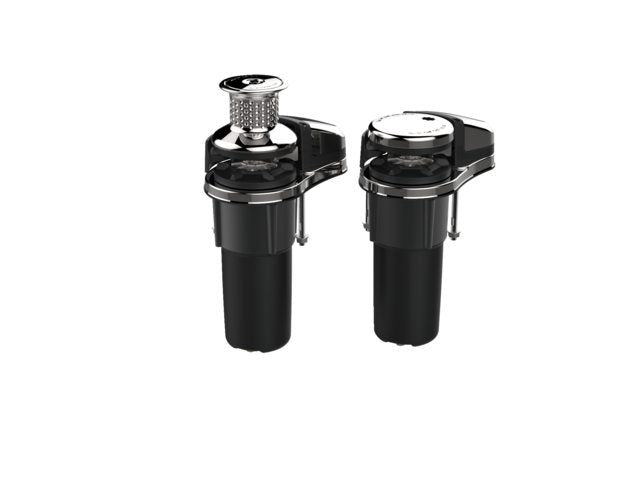

The VX1L series features a motor positioned vertically under the windlass, making it compact and efficient for installation. It is easy to mount and comes with a combination of chain wheel and capstan (GD).

  • Manual free fall
  • Same mounting dimensions as the V700
  • Available with motors of 500W and 800W
  • Standard with IP67 motor protection
  • The set includes: deck unit, motor/gearbox, relay, chain wheel, and sensor for chain counter. Excludes switch and fuse.

Specifications

  • Brand: Lewmar
  • Item no.: 76412056
  • EAN: 743683334702
  • MPN: 69100057

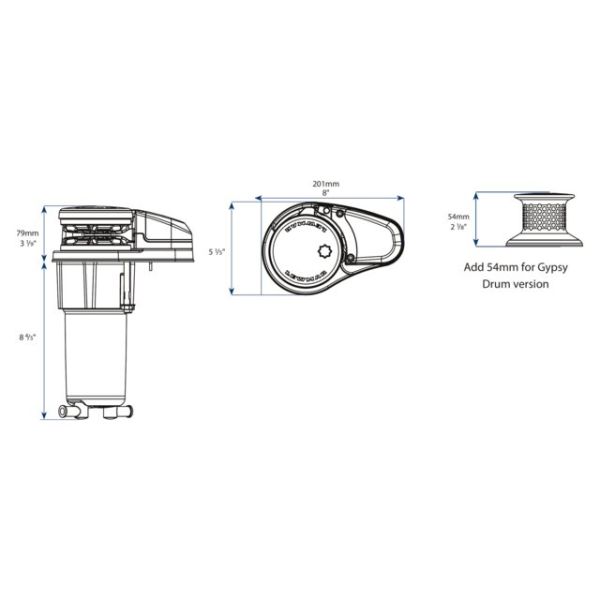

  • Length: 201 mm
  • Width: 135.46 mm
  • Power output: 800 W
  • Voltage: 12 V
  • Weight: 8.5 kg
  • Pulling force: 920 kg
  • Workload: 230 daN
  • Line speed: 21 m/mn
  • Fuse: 70 A
  • For Chain size: 8 mm
  • IP-ratings: IP67
  • Material: Stainless Steel AISI 316, Composite
  • Chain Norm: DIN766
  • Packaging unit: 1 pcs
